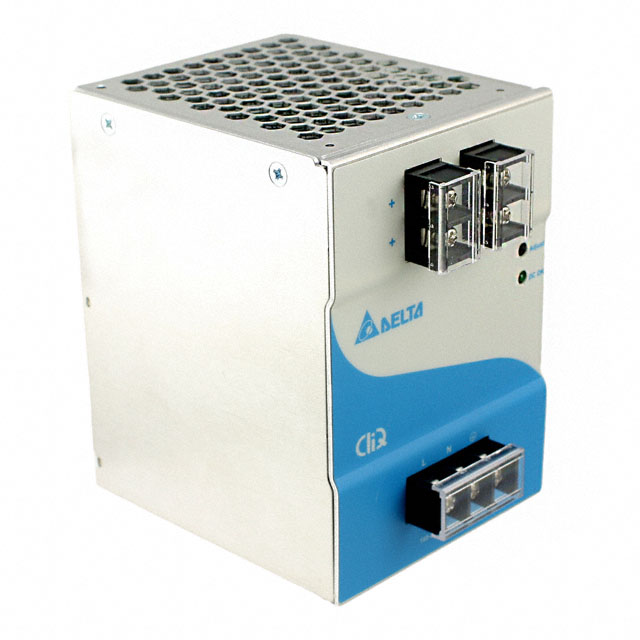

DRP024V240W1AA

Obsolete

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W CARTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStandard Power Supplies UL Cert DRP024V240W1AA Hazloc Cert +3

DRP024V240W1AA

Obsolete

Delta Electronics

AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W CARTON

Deep-Dive with AI

DocumentsStandard Power Supplies UL Cert DRP024V240W1AA Hazloc Cert +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DRP024V240W1AA

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Current - Output (Max) [Max]	10 A
Efficiency	84 %
Features	Universal Input, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-20 °C
Power (Watts)	240 W
Size / Dimension [x]	118.5 mm
Size / Dimension [x]	4.67 in
Size / Dimension [y]	85 mm
Size / Dimension [y]	3.35 in
Size / Dimension [z]	121 mm
Size / Dimension [z]	4.76 "
Standard Number	213, F47, 61000-6-1, 55024, 61204-3, 61000-3-2, 508, 60950-1, 55032, 50581, 107.1-01, 60079-15, 55011, 62368-1, 61000-6-2
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

DRP024 Series

Part	Number of Outputs	Power (Watts)	Features	Standard Number	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Efficiency	Input Type	Approval Agency	Operating Temperature [custom]
Delta Electronics DRP024V240W1AA	1	240 W	Adjustable Output Load Sharing Universal Input	107.1-01 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-6-1 61000-6-2 61204-3 62368-1 F47	24 V	75 ¯C	-20 °C	4000 V	85 mm	121 mm	3.35 in	118.5 mm	4.76 "	4.67 in	ITE (Commercial)	85 VAC	264 VAC	10 A	84 %	AC
Delta Electronics DRP024V480W1BA	1	480 W	Adjustable Output IP20 Load Sharing PFC Universal Input	107.1-01 1310 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3	24 V			4000 V	118.6 mm	121 mm	4.67 in	144 mm	4.76 "	5.76 in	ITE (Commercial)	85 VAC	264 VAC	20 A	92 %	AC	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL	-25 °C 75 °C
Delta Electronics DRP024V120W1BN	1		Adjustable Output IP20 Load Sharing PFC Universal Input	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	24 V			4000 V	50 mm	121 mm	1.97 "	123.7 mm	4.76 "	4.87 "	ITE (Commercial)	85 VAC	264 VAC	5 A	90 %	AC	CB Scheme CE CSA EAC EN SIQ UL
Delta Electronics DRP024V480W3BA	1	480 W	Adjustable Output IP20 Load Sharing PFC Universal Input	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3	24 V	80 ¯C	-25 °C	4000 V	117.3 mm	121 mm	4.62 in	140 mm	4.76 "	5.52 "	Hazardous Locations ITE (Commercial)	320 VAC	600 VAC	20 A	91 %	AC	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL
Delta Electronics DRP024V480W1AA	1	480 W	Adjustable Output Load Sharing Universal Input	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-2 61204-3 62368-1 F47	24 V	75 ¯C	-20 °C	4000 V	160 mm	121 mm	6.3 "	118.5 mm	4.76 "	4.67 in	ITE (Commercial)	85 VAC	264 VAC	20 A	88 %	AC
Delta Electronics DRP024V120W3BN	1		Adjustable Output IP20 Load Sharing PFC Universal Input	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	24 V	85 °C	-25 °C	4000 V							ITE (Commercial)	400 VAC	500 VAC	5 A	88 %	AC	CB Scheme CE CSA EAC EN SIQ UL
Delta Electronics DRP024V060W3BN	1		Adjustable Output IP20 Load Sharing PFC Universal Input	107.1-01 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	24 V	80 ¯C	-25 °C	4000 V							ITE (Commercial)	320 VAC	600 VAC	2.5 A	86 %	AC	CB Scheme CE CSA EAC EN SIQ UL
Delta Electronics DRP024V060W3BA	1		Adjustable Output IP20 Load Sharing PFC Universal Input	107.1-01 12.12.09 213 50581 508 55011 55024 55032 60079-15 60950-1 61000-3-2 61000-3-3 61000-6-2 61204-3 62368-1	24 V	80 ¯C	-25 °C	4000 V							ITE (Commercial)	320 VAC	600 VAC	2.5 A	86 %	AC	ATEX EN CB Scheme CE CSA DNV GL EAC EN SIQ UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.98
		10	$ 94.03
		25	$ 89.32
		50	$ 85.91
		100	$ 82.64
