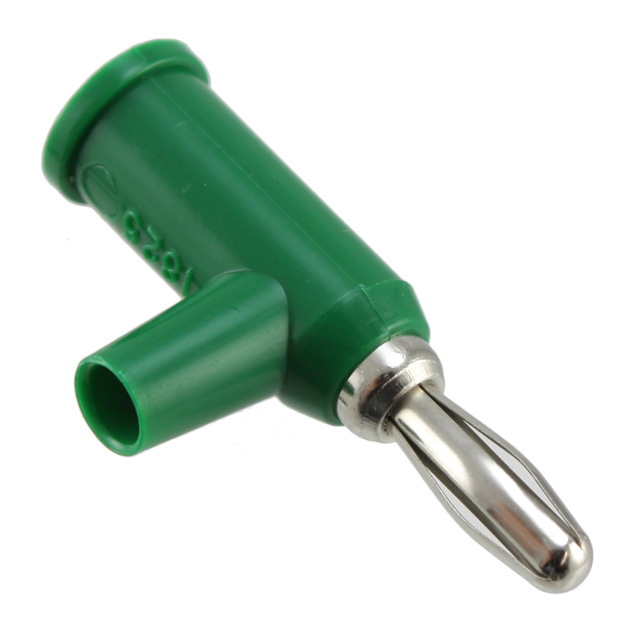

1825-5

Active

Pomona Electronics

CONN BANANA M 1 POS SCREW ST CABLE MOUNT 1 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1825-5

Active

Pomona Electronics

CONN BANANA M 1 POS SCREW ST CABLE MOUNT 1 PORT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1825-5

Body Material	Polypropylene (PP)
Color	Green
Contact Finish	Nickel
Contact Material	Beryllium Copper
Features	Set Screw, Safety Collar
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Stackable
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

1825 Series

Part	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Color	Plug/Mating Plug Diameter	Features	Type	Contact Finish	Operating Temperature	Mounting Type	Body Material	Insulation	Termination	Gender
Pomona Electronics 1825-2#	Beryllium Copper	22 AWG	17.5 AWG	Red	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-4#	Beryllium Copper	22 AWG	17.5 AWG	Yellow	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-5	Beryllium Copper	22 AWG	17.5 AWG	Green	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-3	Beryllium Copper	22 AWG	17.5 AWG		Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-9#	Beryllium Copper	22 AWG	17.5 AWG	White	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-2	Beryllium Copper	22 AWG	17.5 AWG	Red	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-7#	Beryllium Copper	22 AWG	17.5 AWG	Violet	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-7	Beryllium Copper	22 AWG	17.5 AWG	Violet	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-1#	Beryllium Copper	22 AWG	17.5 AWG	Brown	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male
Pomona Electronics 1825-8#	Beryllium Copper	22 AWG	17.5 AWG	Gray	Standard Banana	Safety Collar Set Screw	Banana Plug Stackable	Nickel	50 °C	Free Hanging (In-Line)	Polypropylene (PP)	Non-Mating End Insulated	Solderless	Male

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.56
		25	$ 2.46

Description

General part information

1825 Series

Banana Plug, Stackable Connector Standard Banana Solderless Green
