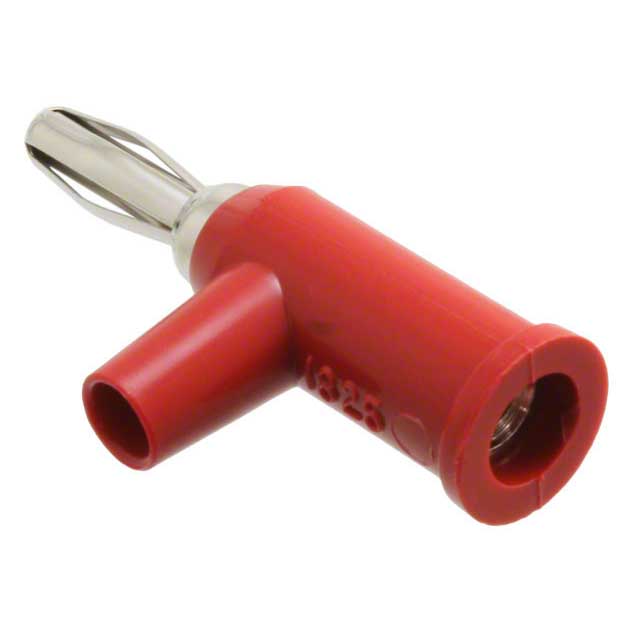

Specification	1825-2#

Body Material	PP, Polypropylene
Color	Red
Contact Finish	Nickel
Contact Material	Beryllium Copper
Features	Safety Collar, Set Screw
Gender	Male
Insulation	Non-Mating End Insulated
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Solderless
Type	Banana Plug, Stackable
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	18 AWG

1825 Series

Part	Body Material	Contact Finish	Operating Temperature	Contact Material	Termination	Gender	Mounting Type	Features	Color	Insulation	Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Plug/Mating Plug Diameter
Pomona Electronics 1825-2#	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Red	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-4#	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Yellow	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-5	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Green	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-3	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Orange	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-9#	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	White	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-2	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Red	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-7#	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Violet	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-7	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Violet	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-8	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Gray	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
Pomona Electronics 1825-02	Polypropylene PP	Nickel	50 °C	Beryllium Copper	Solderless	Male	Free Hanging (In-Line)	Safety Collar Set Screw	Black Red	Non-Mating End Insulated	Banana Plug Stackable	18 AWG	22 AWG	Standard Banana
