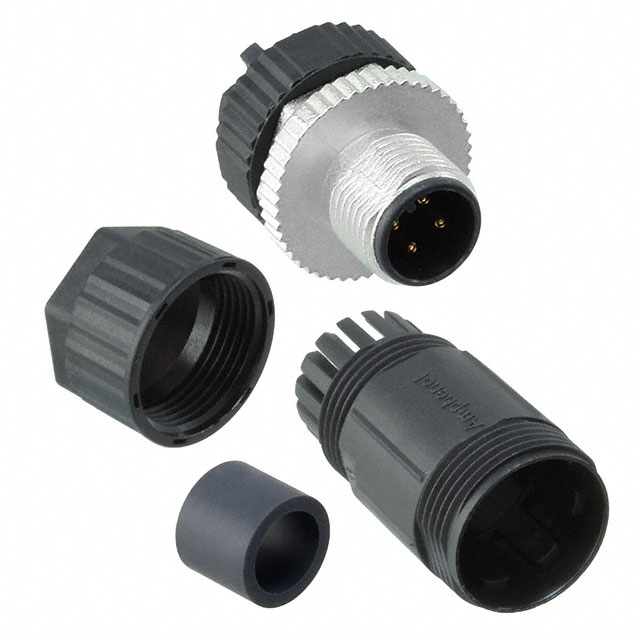

M12A-04BMMB-SL7001
ActiveAmphenol LTW
CONN PLUG MALE 4POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M12A-04BMMB-SL7001
ActiveAmphenol LTW
CONN PLUG MALE 4POS GOLD SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M12A-04BMMB-SL7001 |
|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-4 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.00 | |
| 10 | $ 8.10 | |||
| 30 | $ 7.63 | |||
| 50 | $ 7.43 | |||
| 100 | $ 7.24 | |||
| 250 | $ 6.46 | |||
| 500 | $ 6.07 | |||
| 1000 | $ 5.36 | |||
Description
General part information
M12A-04BMMB Series
4 Position Circular Connector Plug, Male Pins Screw
