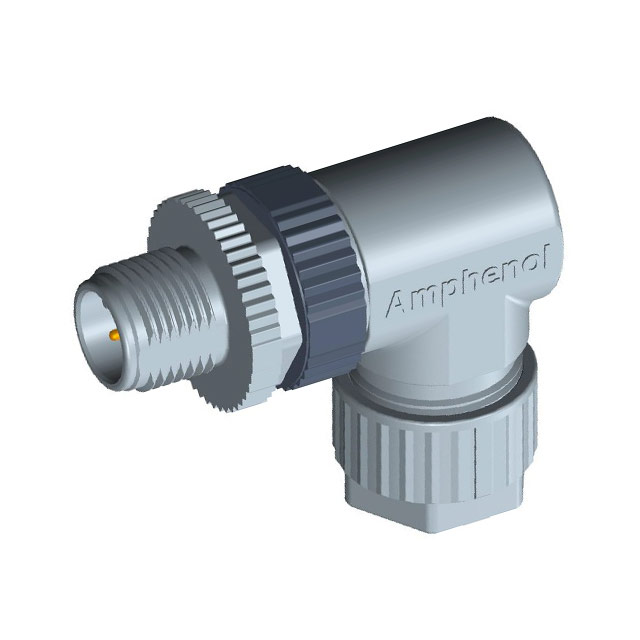

M12A-04BMMB-SR7001

Active

Amphenol LTW

CONN PLUG MALE 4POS GOLD SCREW

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 4POS GOLD SCREW

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-04BMMB-SR7001

Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	250 VAC

Part	Insert Material	Shell Material	Backshell Material, Plating	Orientation	Ingress Protection	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mounting Type	Connector Type	Shell Finish	Current Rating (Amps)	Number of Positions	Shell Size - Insert	Color	Primary Material	Contact Material	Shielding	Termination	Features
Amphenol LTW M12A-04BMMB-SR7001	Nylon Polyamide (PA)	Zinc Alloy	Nylon Polyamide (PA)	A	IP67 - Dust Tight Waterproof	Gold	-40 °C	105 ░C	250 VAC	Free Hanging (In-Line) Right Angle	Male Pins Plug	Nickel	4 A	4	M12-4	Black Silver	Metal	Copper Alloy	Unshielded	Screw	Backshell
Amphenol LTW M12A-04BMMB-SL7001	Nylon Polyamide (PA)	Zinc Alloy	Nylon Polyamide (PA)	A	IP67 - Dust Tight Waterproof	Gold	-40 °C	105 ░C	250 VAC	Free Hanging (In-Line)	Male Pins Plug	Nickel	4 A	4	M12-4	Silver	Metal	Copper Alloy	Unshielded	Screw	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Male Pins Screw
