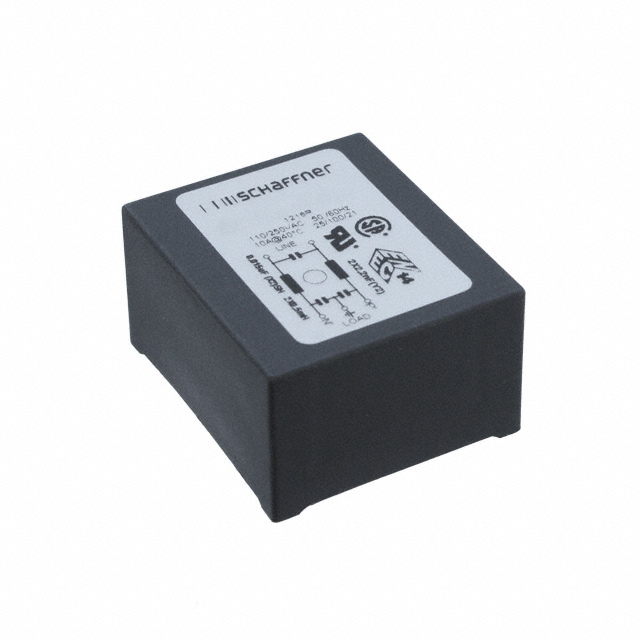

FN405-10-02

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 10A TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 10A TH

Technical Specifications

Parameters and characteristics for this part

Specification	FN405-10-02

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	10 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	500 µH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	PC Pins
Voltage - Rated AC	250 V

Part	Operating Temperature [custom]	Filter Type	Voltage - Rated AC	Approval Agency	Termination Style	Configuration	Inductance	Mounting Type	Frequency - Operating	Applications	Current
TE Connectivity Raychem Cable Protection FN405-0.5-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	24 mH	Through Hole	400 Hz	General Purpose	500 mA
TE Connectivity Raychem Cable Protection FN405-1-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	10 mH	Through Hole	400 Hz	General Purpose	1 A
TE Connectivity Raychem Cable Protection FN405-3-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	2 mH	Through Hole	400 Hz	General Purpose	3 A
TE Connectivity Raychem Cable Protection FN405-10-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	500 µH	Through Hole	400 Hz	General Purpose	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 10 A 250V DC ~ 400Hz Single Stage PC Pins
