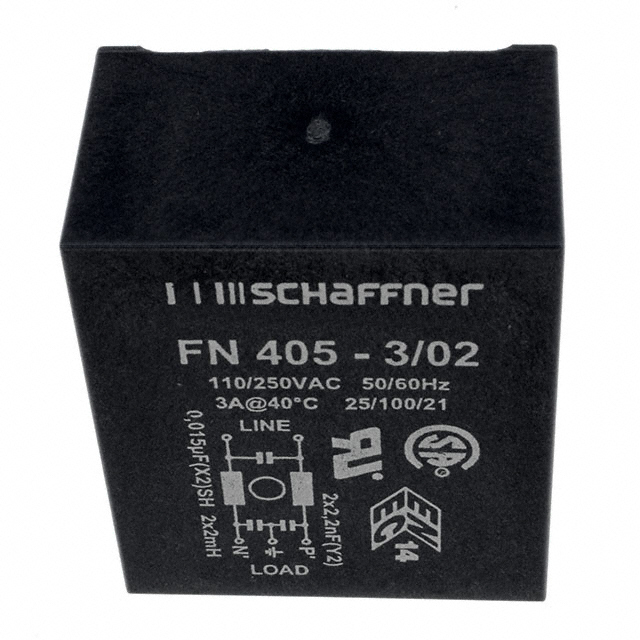

FN405-3-02

Active

TE Connectivity Raychem Cable Protection

SINGLE PHASE EMI FILTER, 250V, 50/60HZHZ, ROHS COMPLIANT PACKAGE-5

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SINGLE PHASE EMI FILTER, 250V, 50/60HZHZ, ROHS COMPLIANT PACKAGE-5

Technical Specifications

Parameters and characteristics for this part

Specification	FN405-3-02

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	3 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	2 mH
Mounting Type	Through Hole
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	PC Pins
Voltage - Rated AC	250 V

Part	Operating Temperature [custom]	Filter Type	Voltage - Rated AC	Approval Agency	Termination Style	Configuration	Inductance	Mounting Type	Frequency - Operating	Applications	Current
TE Connectivity Raychem Cable Protection FN405-0.5-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	24 mH	Through Hole	400 Hz	General Purpose	500 mA
TE Connectivity Raychem Cable Protection FN405-1-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	10 mH	Through Hole	400 Hz	General Purpose	1 A
TE Connectivity Raychem Cable Protection FN405-3-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	2 mH	Through Hole	400 Hz	General Purpose	3 A
TE Connectivity Raychem Cable Protection FN405-10-02	-25 °C 100 °C	Single Phase	250 V	CSA ENEC UR	PC Pins	Single Stage	500 µH	Through Hole	400 Hz	General Purpose	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 3 A 250V DC ~ 400Hz Single Stage PC Pins
