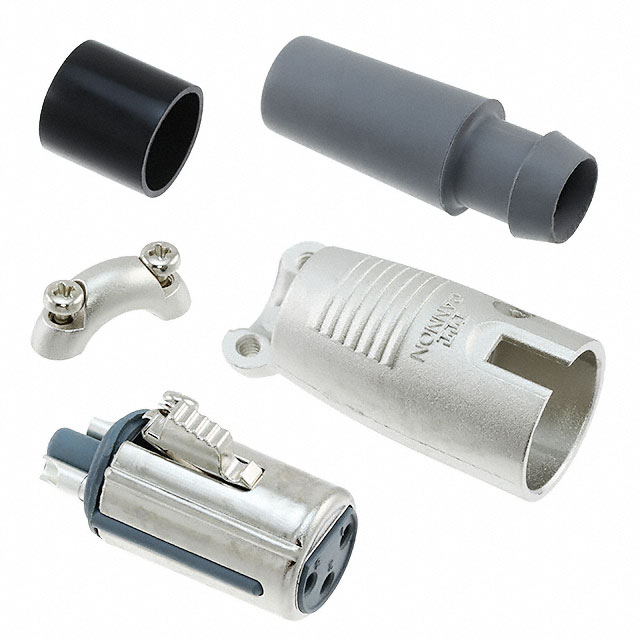

XLR311C

Active

ITT Cannon, LLC

CONN PLUG FMALE XLR 3P SOLDER

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG FMALE XLR 3P SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	XLR311C	XLR31 Series

Color	Silver	Silver
Connector Style	-	Standard
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver
Convert From (Adapter End)	-	Male Pins
Convert To (Adapter End)	-	Male Pins
Fastening Type	Latch Lock	Detent Lock, Push-Pull, Latch Lock
Features	Cable Clamp	Cable Clamp
Housing Color	-	Silver
Housing Finish	-	Nickel
Housing Material	-	Brass
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	-	3
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum	Aluminum
Shell Size - Insert	XLR	XLR
Shell Size - Insert (Convert From)	-	XLR
Shell Size - Insert (Convert To)	-	XLR
Shielding	-	Unshielded
Termination	Solder	Solder
Voltage Rating	133 V	133 V

CONN ADAPTER 3P-3P M-M INLINE

Part	Number of Positions (Convert From)	Connector Style	Convert From (Adapter End)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Convert To (Adapter End)	Shielding	Fastening Type	Housing Material	Housing Finish	Mounting Type	Housing Color	Shell Material	Voltage Rating	Contact Finish - Mating	Termination	Orientation	Features	Color	Primary Material	Connector Type	Shell Finish	Shell Size - Insert
ITT Cannon, LLC XLR31212F	3	Standard	Male Pins	XLR	XLR	Male Pins	Unshielded	Detent Lock, Push-Pull	Brass	Nickel	Free Hanging (In-Line)	Silver
ITT Cannon, LLC XLR311C								Latch Lock			Free Hanging (In-Line)		Aluminum	133 V	Silver	Solder	Keyed	Cable Clamp	Silver	Metal	Female Sockets, Plug	Nickel	XLR
