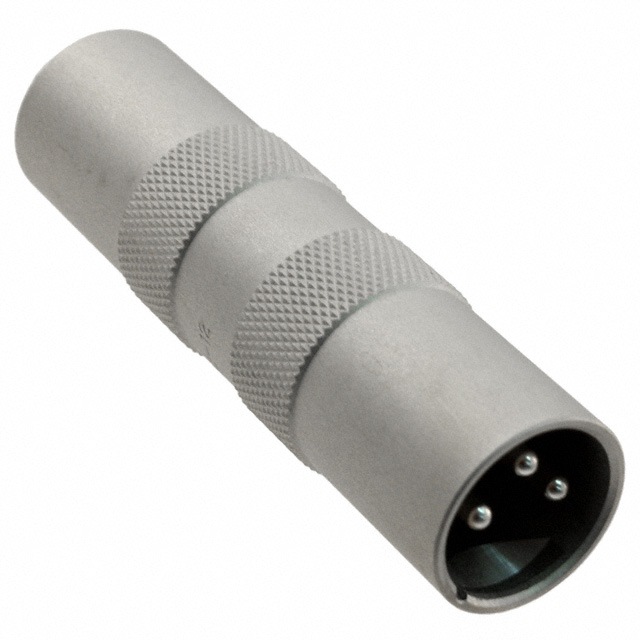

XLR31212F

Active

ITT Cannon, LLC

CONN ADAPTER 3P-3P M-M INLINE

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN ADAPTER 3P-3P M-M INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XLR31212F	XLR31 Series

Color	-	Silver
Connector Style	Standard	Standard
Connector Type	-	Female Sockets, Plug
Contact Finish - Mating	-	Silver
Convert From (Adapter End)	Male Pins	Male Pins
Convert To (Adapter End)	Male Pins	Male Pins
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull, Latch Lock
Features	-	Cable Clamp
Housing Color	Silver	Silver
Housing Finish	Nickel	Nickel
Housing Material	Brass	Brass
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	3	3
Orientation	-	Keyed
Primary Material	-	Metal
Shell Finish	-	Nickel
Shell Material	-	Aluminum
Shell Size - Insert	-	XLR
Shell Size - Insert (Convert From)	XLR	XLR
Shell Size - Insert (Convert To) [custom]	XLR	XLR
Shielding	Unshielded	Unshielded
Termination	-	Solder
Voltage Rating	-	133 V

CONN ADAPTER 3P-3P M-M INLINE

Part	Number of Positions (Convert From)	Connector Style	Convert From (Adapter End)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Convert To (Adapter End)	Shielding	Fastening Type	Housing Material	Housing Finish	Mounting Type	Housing Color	Shell Material	Voltage Rating	Contact Finish - Mating	Termination	Orientation	Features	Color	Primary Material	Connector Type	Shell Finish	Shell Size - Insert
ITT Cannon, LLC XLR31212F	3	Standard	Male Pins	XLR	XLR	Male Pins	Unshielded	Detent Lock, Push-Pull	Brass	Nickel	Free Hanging (In-Line)	Silver
ITT Cannon, LLC XLR311C								Latch Lock			Free Hanging (In-Line)		Aluminum	133 V	Silver	Solder	Keyed	Cable Clamp	Silver	Metal	Female Sockets, Plug	Nickel	XLR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Connector Standard 3/3 Male Pins/Male Pins Free Hanging (In-Line)
