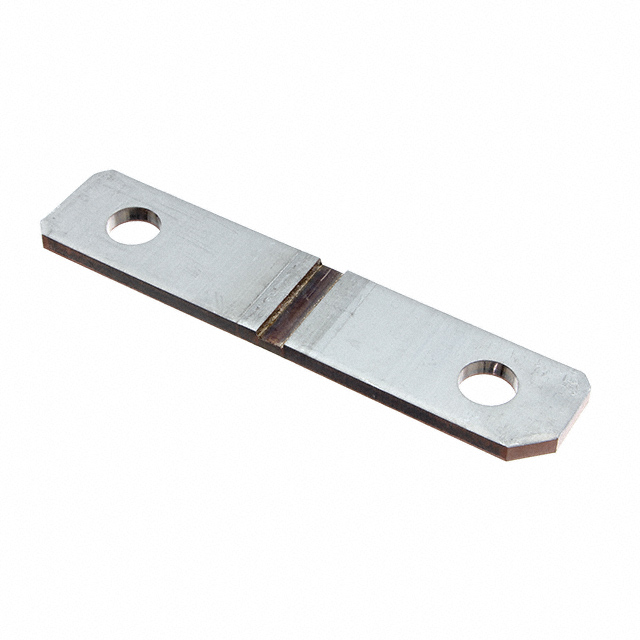

CSM2F-8518-L050J01

Active

Bourns Inc.

SHUNTMETRIC 8518 L05 5% 36W TC50 SN /BULK, BAG PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

SHUNTMETRIC 8518 L05 5% 36W TC50 SN /BULK, BAG PACKAGING

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Tolerance	Temperature Coefficient	Applications	Mounting Type	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Type
Bourns Inc. CSM2F-8518-L050J01	36 W	5 %	150 ppm/°C	Automotive AEC-Q200	Surface Mount	50 µOhms	-40 °C	70 °C
Bourns Inc. CSM2F-7036-L050J01	50 W	5 %	150 ppm/°C	Automotive AEC-Q200	Surface Mount	50 µOhms	-40 °C	170 °C
Bourns Inc. CSM2F-8518-L100J01	36 W	5 %	125 ppm/°C	Automotive AEC-Q200	Surface Mount	100 µOhms	-40 °C	170 °C	Shunt Battery

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 µOhms ±5% 36W Specialized Resistor ±150ppm/°C Surface Mount
