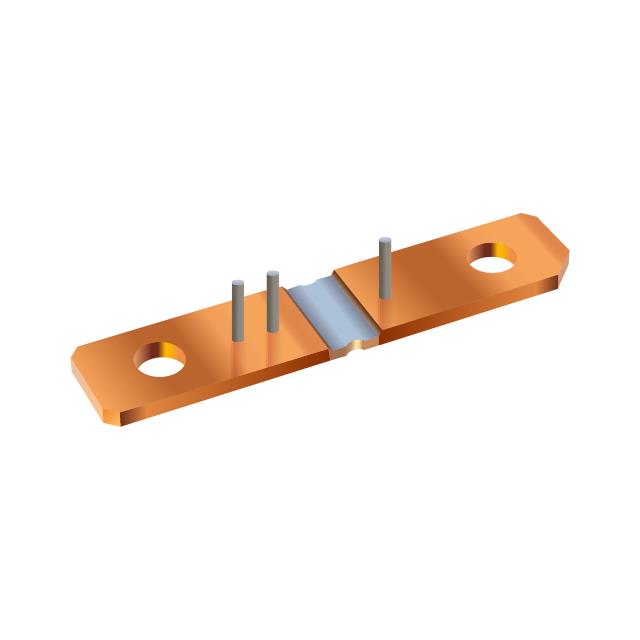

CSM2F-8518-L100J01
ActiveBourns Inc.
RESISTOR SHUNT 100 UOHM 5% 36W
Deep-Dive with AI
Search across all available documentation for this part.
CSM2F-8518-L100J01
ActiveBourns Inc.
RESISTOR SHUNT 100 UOHM 5% 36W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSM2F-8518-L100J01 |
|---|---|
| Applications | Automotive AEC-Q200 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 36 W |
| Resistance | 100 µOhms |
| Temperature Coefficient | 125 ppm/°C |
| Tolerance | 5 % |
| Type | Shunt, Battery |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.08 | |
| 10 | $ 17.24 | |||
| 25 | $ 15.39 | |||
| 50 | $ 14.24 | |||
| 100 | $ 14.06 | |||
Description
General part information
CSM2F Series
100 µOhms ±5% 36W Shunt, Battery Specialized Resistor ±125ppm/°C Surface Mount
