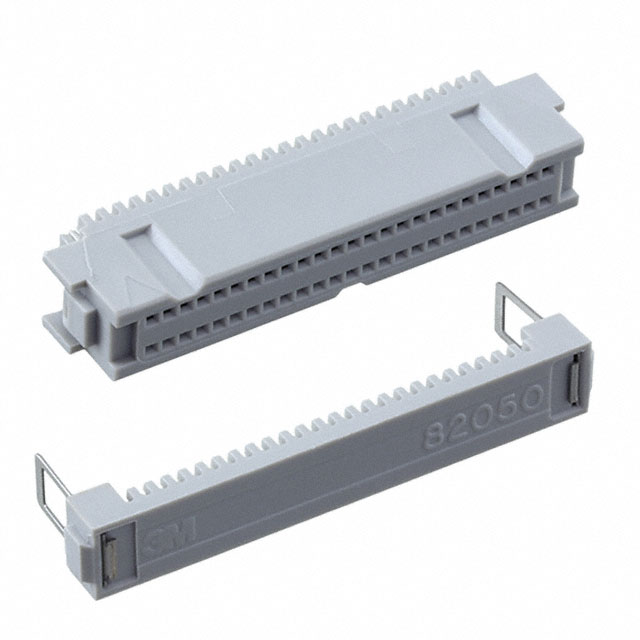

82050-6000-RB

Active

3M (TC)

WIRE-TO-BOARD CONNECTOR, 820 SERIES, IDC / IDT, RECEPTACLE, 50, 1.27 MM, TIN PLATED CONTACTS

Search across all available documentation for this part.

Active

3M (TC)

WIRE-TO-BOARD CONNECTOR, 820 SERIES, IDC / IDT, RECEPTACLE, 50, 1.27 MM, TIN PLATED CONTACTS

Technical Specifications

Parameters and characteristics for this part

Part	Wire Type	Mounting Type	Color	Connector Type	Contact Finish	Wire Gauge	Cable Termination	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Row Spacing [x]	Row Spacing
3M (TC) 82050-6006RB	Ribbon Cable	Free Hanging (In-Line)	Gray	Receptacle	Gold	30 AWG	IDC	Feed Through Strain Relief	0.76 Ám	30 Áin	2	0.05 in	1.27 mm	50	Female Socket	0.1 in	2.54 mm
3M (TC) 82050-6000-RB	Ribbon Cable	Free Hanging (In-Line)	Gray	Receptacle	Gold	30 AWG	IDC	Feed Through	0.76 Ám	30 Áin	2	0.05 in	1.27 mm	50	Female Socket	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position Rectangular Receptacle Connector IDC Gold 30 AWG
