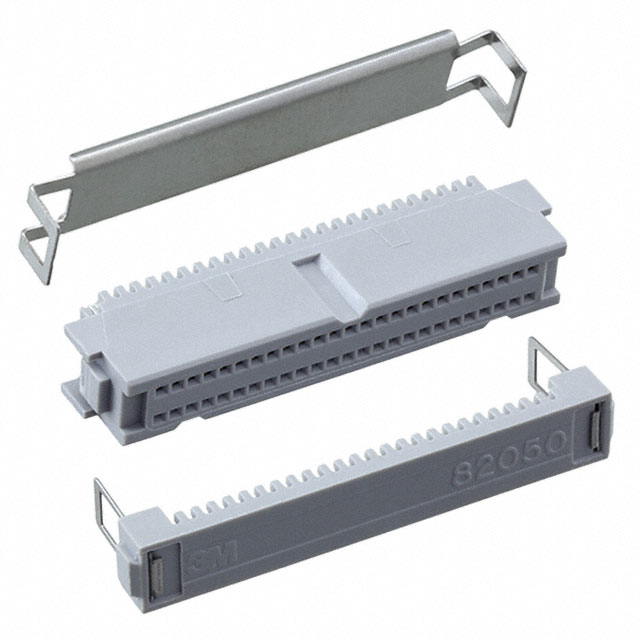

82050-6006RB
ActiveIDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
82050-6006RB
ActiveIDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 50 CONTACTS, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82050-6006RB |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Type | Female Socket |
| Features | Feed Through, Strain Relief |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Gauge | 30 AWG |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
82050 Series
The 820 series tripolarized Wiremount Socket with tin-plated beryllium copper alloy contacts and a glass-filled polybutylene terephthalate insulator. The hill-n-dale design provides a high performance IDC termination and improved signal integrity vs. planar terminated connectors. The metal cover latch for positive cover retention and long term reliability.
