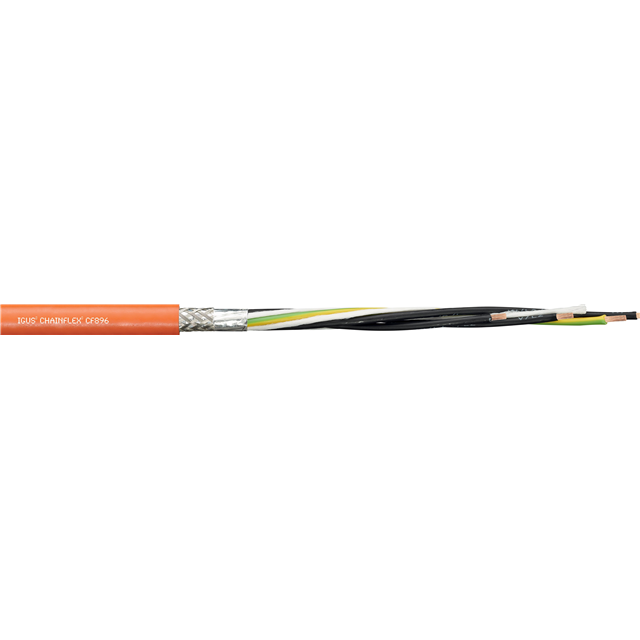

CF896-100-04
ActiveIgus
CABLE 4COND 8AWG ORG SHLD FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF896-100-04 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.728 in |
| Jacket (Insulation) Diameter [diameter] | 18.49 mm |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Orange |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Ratings | UL Style 20940 |
| Shield Coverage | 60%, 100% |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 1000 V |
| Wire Gauge | 8 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 18.74 | |
| 2 | $ 17.85 | |||
| 3 | $ 17.34 | |||
| 5 | $ 16.73 | |||
| 7 | $ 16.33 | |||
| 10 | $ 15.92 | |||
| 25 | $ 14.90 | |||
| 50 | $ 14.17 | |||
| 100 | $ 13.47 | |||
Description
General part information
CF896 Series
4 Conductor Multi-Conductor Cable Orange 8 AWG Foil, Braid Enter Number of Feet in Order Quantity
