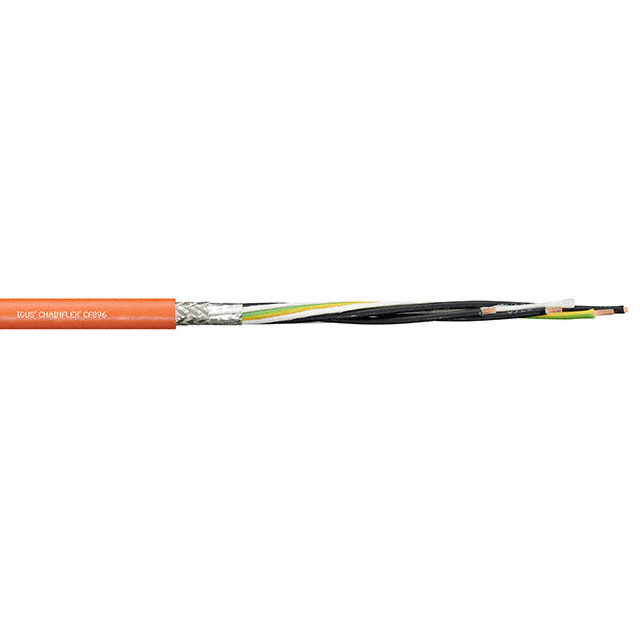

CF896-15-04
ActiveIgus
CABLE 4COND 16AWG ORG SHLD FOOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF896-15-04
ActiveIgus
CABLE 4COND 16AWG ORG SHLD FOOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF896-15-04 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant |
| Jacket (Insulation) Diameter [diameter] | 0.354 in |
| Jacket (Insulation) Diameter [diameter] | 8.99 mm |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Orange |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Ratings | UL Style 20940 |
| Shield Coverage | 60%, 100% |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Voltage | 1000 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 6.13 | |
| 2 | $ 5.84 | |||
| 3 | $ 5.68 | |||
| 5 | $ 5.48 | |||
| 7 | $ 5.35 | |||
| 10 | $ 5.22 | |||
| 25 | $ 4.89 | |||
| 50 | $ 4.65 | |||
| 100 | $ 4.42 | |||
Description
General part information
CF896 Series
4 Conductor Multi-Conductor Cable Orange 16 AWG Foil, Braid Enter Number of Feet in Order Quantity
