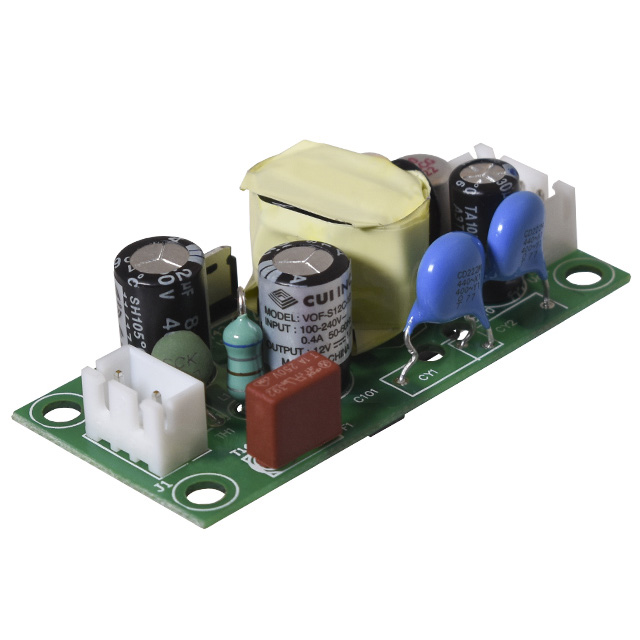

Specification	VOF-S12C-24

Applications	ITE (Commercial), Household Appliances
Approval Agency	UL, IEC, EN, CB Scheme, FCC
Current - Output 1	500 mA
Efficiency	87 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	12 W
Size / Dimension Height	0.55 in
Size / Dimension Length	2.15 in
Size / Dimension Width	1 in
Standard Number	61204-3, 61000-6-1, 60950-1, 61000-6-4, 62368-1, 61000-6-3, 61000-3-2, 61000-3-3, 55032 Class A, 55024
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Input (DC) Maximum	370 V
Voltage - Input (DC) Minimum	120 V
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

VOF-S12 Series

Part	Applications	Approval Agency	Mounting Type	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Maximum	Current - Output (Max)	Voltage - Output 1	Standard Number	Power (Watts)	Type	Load Regulation (Percent)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Operating Temperature (Max)	Operating Temperature (Min)	Line Regulation	Package / Case	Efficiency	Number of Outputs	Features	Current - Output 1	Voltage - Isolation
CUI Inc. VOF-S12B-15	Household Appliances ITE (Commercial)	CB Scheme EN FCC IEC UL	Through Hole	120 V	264 V	90 V	370 V	800 mA	15 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	12 W	Open Frame	1 %	1.5 in	1 in	0.85 in	75 °C	-40 °C	1 %	4-DIP Module	85 %	1	Universal Input
CUI Inc. VOF-S12B-12	Household Appliances ITE (Commercial)	CB Scheme EN FCC IEC UL	Through Hole	120 V	264 V	90 V	370 V	1 A	12 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	12 W	Open Frame	1 %	1.5 in	1 in	0.85 in	75 °C	-40 °C	1 %	4-DIP Module	85 %	1	Universal Input
CUI Inc. VOF-S12C-12	Household Appliances ITE (Commercial)	CB Scheme EN FCC IEC UL	Chassis Mount	120 V	264 V	90 V	370 V		12 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	12 W	Open Frame		2.15 in	1 in	0.55 in	75 °C	-40 °C			85 %	1	Universal Input	1 A	3 kV
CUI Inc. VOF-S12B-9	Household Appliances ITE (Commercial)	CB Scheme EN FCC IEC UL	Through Hole	120 V	264 V	90 V	370 V	1.34 A	9 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	12 W	Open Frame	1 %	1.5 in	1 in	0.85 in	75 °C	-40 °C	1 %	4-DIP Module	85 %	1	Universal Input
CUI Inc. VOF-S12C-24	Household Appliances ITE (Commercial)	CB Scheme EN FCC IEC UL	Chassis Mount	120 V	264 V	90 V	370 V		24 V	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	12 W	Open Frame		2.15 in	1 in	0.55 in	75 °C	-40 °C			87 %	1	Universal Input	500 mA	3 kV
