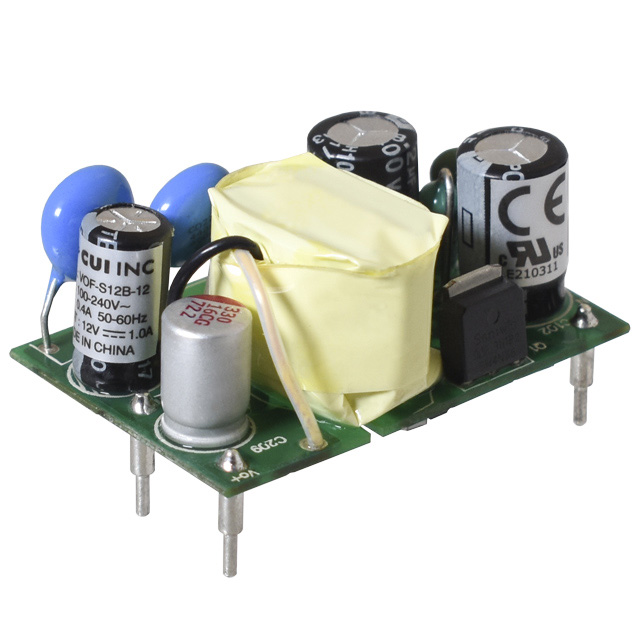

VOF-S12B-12

Active

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 12V 1A 12W 4-PIN BOX

Deep-Dive with AI

Search across all available documentation for this part.

VOF-S12B-12

Active

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 12V 1A 12W 4-PIN BOX

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-S12B-12

Applications	Household Appliances, ITE (Commercial)
Approval Agency	UL, IEC, FCC, EN, CB Scheme
Current - Output (Max) [Max]	1 A
Efficiency	85 %
Features	Universal Input
Line Regulation	1 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	75 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	4-DIP Module
Power (Watts)	12 W
Size / Dimension [x]	38.1 mm
Size / Dimension [x]	1.5 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.85 "
Size / Dimension [z]	21.5 mm
Standard Number	61000-3-2, 55024, 61000-6-4, 61000-6-3, 55032 Class A, 60950-1, 61000-3-3, 62368-1, 61204-3, 61000-6-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Output 1	12 V

VOF-S12 Series

Part	Mounting Type	Features	Line Regulation	Number of Outputs	Applications	Power (Watts)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Load Regulation	Voltage - Output 1	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Standard Number	Current - Output (Max) [Max]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current - Output 1	Voltage - Isolation
CUI Inc. VOF-S12B-15	Through Hole	Universal Input	1 %	1	Household Appliances ITE (Commercial)	12 W	4-DIP Module	-40 °C	75 ¯C	1 %	15 V	CB Scheme EN FCC IEC UL	264 VAC 370 VDC	90 VAC 120 VDC	85 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	800 mA	Open Frame	25.4 mm	25.4 mm	0.85 "	21.5 mm	38.1 mm	1.5 in
CUI Inc. VOF-S12B-12	Through Hole	Universal Input	1 %	1	Household Appliances ITE (Commercial)	12 W	4-DIP Module	-40 °C	75 ¯C	1 %	12 V	CB Scheme EN FCC IEC UL	264 VAC 370 VDC	90 VAC 120 VDC	85 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	1 A	Open Frame	25.4 mm	25.4 mm	0.85 "	21.5 mm	38.1 mm	1.5 in
CUI Inc. VOF-S12B-9	Through Hole	Universal Input	1 %	1	Household Appliances ITE (Commercial)	12 W	4-DIP Module	-40 °C	75 ¯C	1 %	9 V	CB Scheme EN FCC IEC UL	264 VAC 370 VDC	90 VAC 120 VDC	85 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1	1.34 A	Open Frame	25.4 mm	25.4 mm	0.85 "	21.5 mm	38.1 mm	1.5 in
CUI Inc. VOF-S12C-24	Chassis Mount	Universal Input		1	Household Appliances ITE (Commercial)	12 W		-40 °C	75 ¯C		24 V	CB Scheme EN FCC IEC UL	264 VAC 370 VDC	90 VAC 120 VDC	87 %	55024 55032 Class A 60950-1 61000-3-2 61000-3-3 61000-6-1 61000-6-3 61000-6-4 61204-3 62368-1		Open Frame	25.4 mm			0.55 in 14 mm	2.15 in 54.6 mm		500 mA	3000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.25
		5	$ 17.00
		10	$ 16.76
		26	$ 15.77
		52	$ 15.28
		104	$ 14.79
		260	$ 14.29
		520	$ 13.80

Description

General part information

VOF-S12 Series

Open Frame AC DC Converters 1 Output 12V 1A 90 ~ 264 VAC, 120 ~ 370 VDC Input

Documents

Technical documentation and resources

No documents available
