332109

Active

Amphenol RF

CONN ADAPT JACK-JACK 4.1/9.5

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK 4.1/9.5

Technical Specifications

Parameters and characteristics for this part

Specification	332109

Adapter Series	4.1/9.5 to 4.1/9.5
Adapter Type	Jack to Jack
Body Finish	Copper Alloy
Body Material	Brass
Center Contact Material	Copper Alloy
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, 4.1/9.5 Jack
Convert To (Adapter End)	4.1/9.5 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Low PIM
Frequency - Max [Max]	3 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Connector Style [Min]	Connector Style [Max]	Dielectric Material	Insertion Loss	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Contact Termination	Mating Cycles	Center Contact Material	Center Contact Plating	Cable Group	Cable Group [diameter]	Number of Ports	Impedance	Shield Termination	Body Material	Connector Type	Body Finish	Housing Color	Frequency - Max [Max]	Convert From (Adapter End)	Convert To (Adapter End)	Style	Conversion Type	Adapter Series	Center Gender	Mounting Feature	Adapter Type	Cable Group
Amphenol RF 332114	4.1	9.5	Polytetrafluoroethylene (PTFE)	0.05 dB	Free Hanging (In-Line)	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Low PIM	Push On	500	Beryllium Copper	Silver	Helical	0.375 in	1	50 Ohms	Clamp	Brass	Male Pin Plug	White Bronze	Silver	3 GHz
Amphenol RF 332109			Polytetrafluoroethylene (PTFE)			85 °C	-40 °C		Low PIM		500	Copper Alloy	Silver				50 Ohms		Brass		Copper Alloy		3 GHz	4.1/9.5 Jack Female Socket	4.1/9.5 Jack Female Socket	Straight	Same Series	4.1/9.5 to 4.1/9.5	Female to Female	Flange	Jack to Jack
Amphenol RF 332120	4.1	9.5	Polymethylpentene (PMP)	0.1 dB	Free Hanging (In-Line)	85 °C	-40 °C	IP68 - Dust Tight Waterproof	Low PIM	Push On	500	Beryllium Copper	Silver	Helical		1	50 Ohms	Clamp	Brass	Male Pin Plug	White Bronze	Silver	3 GHz									0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

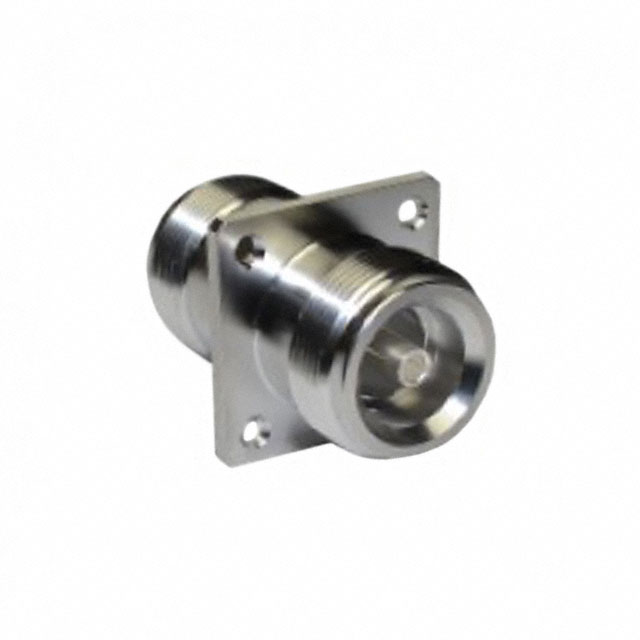

Adapter Coaxial Connector 4.1/9.5 Jack, Female Socket To 4.1/9.5 Jack, Female Socket 50 Ohms
