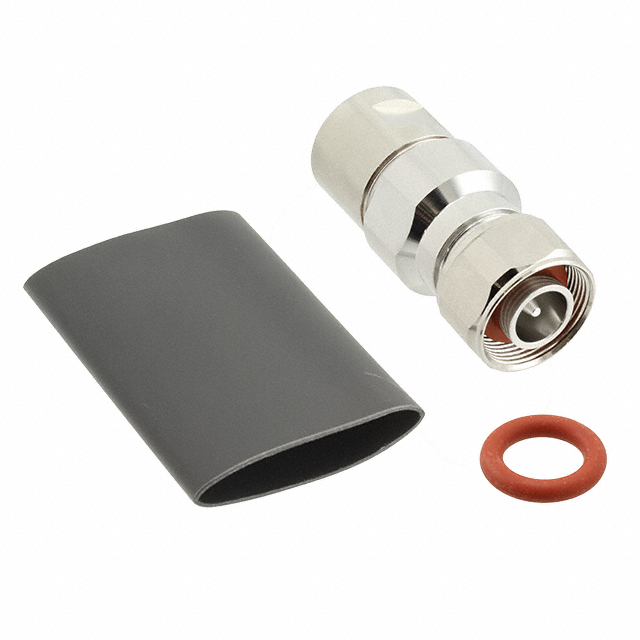

332120

Active

Amphenol RF

CONN 4.1/9.5 PLUG STR 50OHM PUSH

Search across all available documentation for this part.

Active

Amphenol RF

CONN 4.1/9.5 PLUG STR 50OHM PUSH

Technical Specifications

Parameters and characteristics for this part

Part	Connector Style [Min]	Connector Style [Max]	Dielectric Material	Insertion Loss	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features	Contact Termination	Mating Cycles	Center Contact Material	Center Contact Plating	Cable Group	Cable Group [diameter]	Number of Ports	Impedance	Shield Termination	Body Material	Connector Type	Body Finish	Housing Color	Frequency - Max [Max]	Convert From (Adapter End)	Convert To (Adapter End)	Style	Conversion Type	Adapter Series	Center Gender	Mounting Feature	Adapter Type	Cable Group
Amphenol RF 332114	4.1	9.5	Polytetrafluoroethylene (PTFE)	0.05 dB	Free Hanging (In-Line)	85 °C	-40 °C	IP67 - Dust Tight Waterproof	Low PIM	Push On	500	Beryllium Copper	Silver	Helical	0.375 in	1	50 Ohms	Clamp	Brass	Male Pin Plug	White Bronze	Silver	3 GHz
Amphenol RF 332109			Polytetrafluoroethylene (PTFE)			85 °C	-40 °C		Low PIM		500	Copper Alloy	Silver				50 Ohms		Brass		Copper Alloy		3 GHz	4.1/9.5 Jack Female Socket	4.1/9.5 Jack Female Socket	Straight	Same Series	4.1/9.5 to 4.1/9.5	Female to Female	Flange	Jack to Jack
Amphenol RF 332120	4.1	9.5	Polymethylpentene (PMP)	0.1 dB	Free Hanging (In-Line)	85 °C	-40 °C	IP68 - Dust Tight Waterproof	Low PIM	Push On	500	Beryllium Copper	Silver	Helical		1	50 Ohms	Clamp	Brass	Male Pin Plug	White Bronze	Silver	3 GHz									0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 41.90

General part information

4.1/9.5 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On

Technical documentation and resources

No documents available
