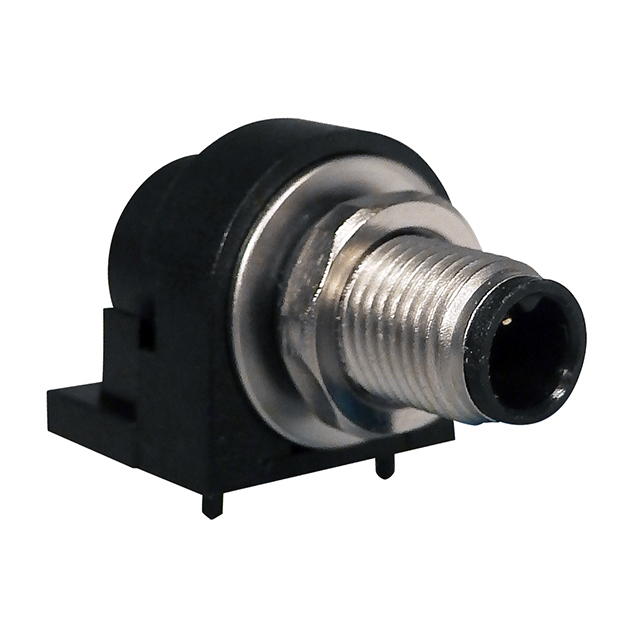

853-002-113R001

Active

MH Connectors

SENSOR CONNECTOR, IP67, R/A, PANEL, VULCON SERIES, M5, MALE, 2 POSITIONS, PCB PIN

Search across all available documentation for this part.

Active

MH Connectors

SENSOR CONNECTOR, IP67, R/A, PANEL, VULCON SERIES, M5, MALE, 2 POSITIONS, PCB PIN

Technical Specifications

Parameters and characteristics for this part

Specification	853-002-113R001

Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-2
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Contact Finish - Mating	Termination	Shell Size - Insert	Contact Material	Ingress Protection	Mounting Type	Orientation	Primary Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Shielding	Features	Color	Shell Material	Shell Finish	Material Flammability Rating	Connector Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating
MH Connectors 853-002-213R004	Gold	Solder	M5-2	Brass	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Keyed	Metal	2	10 çin	0.25 çm	60 VDC	Shielded	Board Guide	Black Silver	Brass	Nickel	UL94 V-0	Female Sockets Plug	Polybutylene Terephthalate (PBT)	85 °C	-40 °C
MH Connectors 853-002-113R001	Gold	Solder	M5-2	Brass	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Keyed	Metal	2			60 VDC	Shielded	Board Guide	Black Silver	Brass	Nickel	UL94 V-0	Male Pins Receptacle	Polybutylene Terephthalate (PBT)	85 °C	-40 °C	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder
