853-002-213R004

Active

MH Connectors

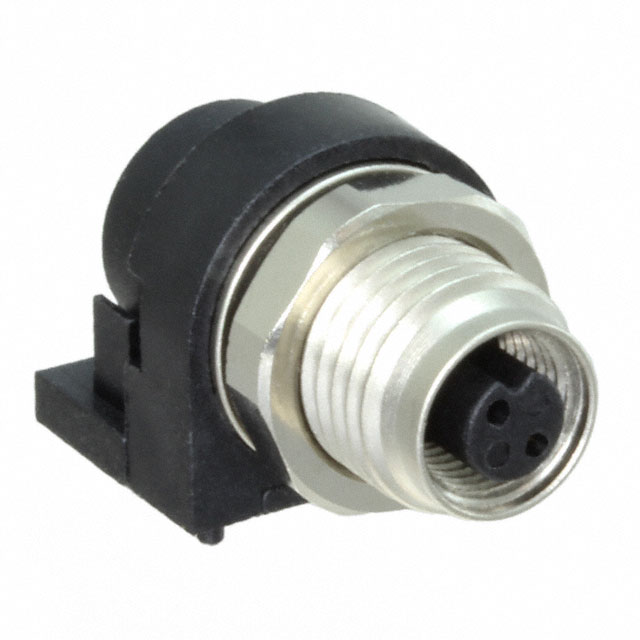

CONN PLUG FMALE 2POS GOLD SOLDER

Search across all available documentation for this part.

Active

MH Connectors

CONN PLUG FMALE 2POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	853-002-213R004

Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Brass
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	M5-2
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

Part	Contact Finish - Mating	Termination	Shell Size - Insert	Contact Material	Ingress Protection	Mounting Type	Orientation	Primary Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Shielding	Features	Color	Shell Material	Shell Finish	Material Flammability Rating	Connector Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating
MH Connectors 853-002-213R004	Gold	Solder	M5-2	Brass	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Keyed	Metal	2	10 çin	0.25 çm	60 VDC	Shielded	Board Guide	Black Silver	Brass	Nickel	UL94 V-0	Female Sockets Plug	Polybutylene Terephthalate (PBT)	85 °C	-40 °C
MH Connectors 853-002-113R001	Gold	Solder	M5-2	Brass	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Keyed	Metal	2			60 VDC	Shielded	Board Guide	Black Silver	Brass	Nickel	UL94 V-0	Male Pins Receptacle	Polybutylene Terephthalate (PBT)	85 °C	-40 °C	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 12.20

General part information

2 Position Circular Connector Plug, Female Sockets Solder
