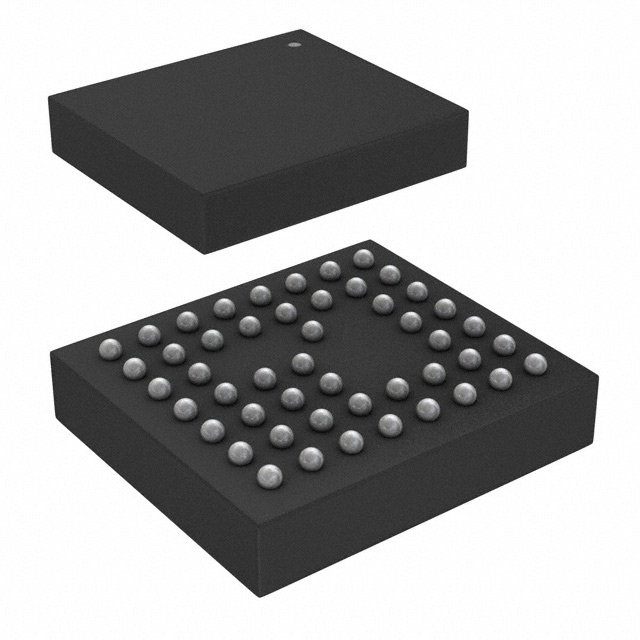

CYW20706UA1KFFB4G

Active

Infineon Technologies

BLUETOOTH V4.2 (BLE) + EDR SMART SOC CLASS I/CLASS II IOT 2MBPS 3.3V 49-PIN FCBGA TRAY

Search across all available documentation for this part.

Active

Infineon Technologies

BLUETOOTH V4.2 (BLE) + EDR SMART SOC CLASS I/CLASS II IOT 2MBPS 3.3V 49-PIN FCBGA TRAY

Technical Specifications

Parameters and characteristics for this part

Part	Type	Protocol	Package / Case	Mounting Type	Voltage - Supply	Power - Output	Memory Size [custom]	Memory Size [custom]	Current - Receiving	RF Family/Standard	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Transmitting	Serial Interfaces	Data Rate (Max)	GPIO	Sensitivity	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Modulation
Infineon Technologies CYW20706UA1KFFB1GT	TxRx + MCU	Bluetooth v4.2	49-VFBGA FCBGA	Surface Mount	3.3 V	12 dBm	352 kB	848 kB	12.5 mA	Bluetooth	2.4 GHz	-30 ░C	85 °C	26.5 mA	I2C I2S SPI UART	2 Mbps	7	-96.5 dBm	4	4.5	49-FCBGA
Infineon Technologies CYW20706UA1KFFB4G	TxRx + MCU	Bluetooth v4.2	49-VFBGA FCBGA	Surface Mount	3.3 V	12 dBm	352 kB	848 kB	12.5 mA	Bluetooth	2.4 GHz	-30 ░C	85 °C	26.5 mA	I2C I2S SPI UART	2 Mbps	7	-96.5 dBm	4	4.5	49-FCBGA
Infineon Technologies CYW20706UA1KFFB1G	TxRx + MCU	Bluetooth v4.2	49-VFBGA FCBGA	Surface Mount	3.3 V	12 dBm	352 kB	848 kB	12.5 mA	Bluetooth	2.4 GHz	-30 ░C	85 °C	26.5 mA	I2C I2S SPI UART	2 Mbps	7	-96.5 dBm	4	4.5	49-FCBGA
Infineon Technologies CYW20706UA2KFFB4GT	TxRx + MCU	Bluetooth v4.2	49-TFBGA	Surface Mount	3.3 V	12 dBm	352 kB	848 kB	12.5 mA	Bluetooth	2.4 GHz	-30 ░C	85 °C	26.5 mA	I2C I2S SPI UART	2 Mbps	24	-96.5 dBm			49-FBGA (4.5x4)	4DQPSK 8DPSK GFSK
Infineon Technologies CYW20706UA2KFFB4G	TxRx + MCU	Bluetooth v4.2	49-TFBGA	Surface Mount	3.3 V	12 dBm	352 kB	848 kB	12.5 mA	Bluetooth	2.4 GHz	-30 ░C	85 °C	26.5 mA	I2C I2S SPI UART	2 Mbps	24	-96.5 dBm			49-FBGA (4.5x4)	4DQPSK 8DPSK GFSK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IC RF TxRx + MCU Bluetooth Bluetooth v4.2 2.4GHz 49-VFBGA, FCBGA
