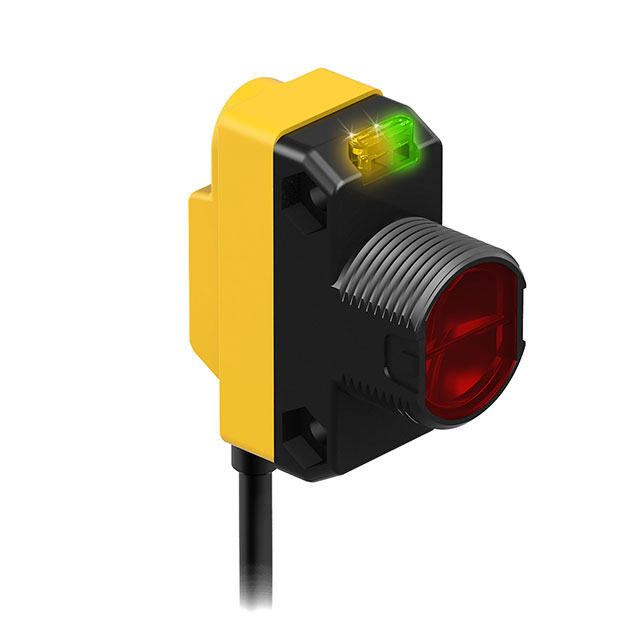

QS18VP6FF100Q5

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, FIXED FIELD, 100 MM, PNP, 10 TO 30 VDC, CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

QS18VP6FF100Q5

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD-BEAM QS18, FIXED FIELD, 100 MM, PNP, 10 TO 30 VDC, CONNECTOR

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS18VP6FF100Q5

Connection Method	Connector
Ingress Protection	NEMA 6P, IEC IP67, IP67
Light Source	LED
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Dark-ON/Light-ON
Response Time	850 µs
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS18VP6 Series

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Sensing Method	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Connection Method	Output Configuration	Sensing Distance	Sensing Distance	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Cable Length	Cable Length	Adjustment Type
BANNER ENGINEERING QS18VP6LDQ8	-10 °C	50 °C	Diffuse	LED	30 VDC	10 VDC	700 µs	Connector	PNP - Dark-ON/Light-ON	11.811 in	300 mm	NEMA 6P IEC IP67
BANNER ENGINEERING QS18VP6LVQ5			NonPolarized Retroreflective	Red LED	30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON	255.906 in	6.5 m	NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6AF250Q8			Background Suppression	Red	30 VDC	10 VDC	2.8 ms	Connector	PNP - Dark-ON/Light-ON			IP67 NEMA 6P	-40 °C	60 °C	640 nm
BANNER ENGINEERING QS18VP6FQ			Background Suppression		30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON - Selectable	1.969 in	50 mm	NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6LVQ8			NonPolarized Retroreflective	Red LED	30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON	255.906 in	6.5 m	IP67 NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6FF50			Background Suppression	LED	30 VDC	10 VDC	850 µs	Cable	PNP - Dark-ON/Light-ON	1.969 in	50 mm	NEMA 6P IEC IP67	-20 C	70 °C		78.74 in	2 m
BANNER ENGINEERING QS18VP6WQ7			Diffuse	Infrared	30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON - Selectable	3.937 in	100 mm	NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6AF100			Background Suppression	Red (660nm)	30 VDC	10 VDC	700 µs	Cable	PNP - Dark-ON/Light-ON	3.937 in	100 mm	IP67 NEMA 6P	-20 C	70 °C		78.74 in	2 m	Adjustable
BANNER ENGINEERING QS18VP6LV			NonPolarized Retroreflective	Red LED	30 VDC	10 VDC	600 µs	Cable	PNP - Dark-ON/Light-ON	255.906 in	6.5 m	NEMA 6P IEC IP67	-20 C	70 °C		78.74 in	2 m
BANNER ENGINEERING QS18VP6FF100Q5			Background Suppression	LED	30 VDC	10 VDC	850 µs	Connector	PNP - Dark-ON/Light-ON	3.937 in	100 mm	IP67 NEMA 6P IEC IP67	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 119.00
Newark	Each	1	$ 129.47
		3	$ 127.05
		5	$ 123.42

Description

General part information

QS18VP6 Series

Background Suppression Optical Sensor 3.937" (100mm) PNP - Dark-ON/Light-ON

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Operating Instructions EN

Datasheet
