QS18VP6AF100

Active

BANNER ENGINEERING

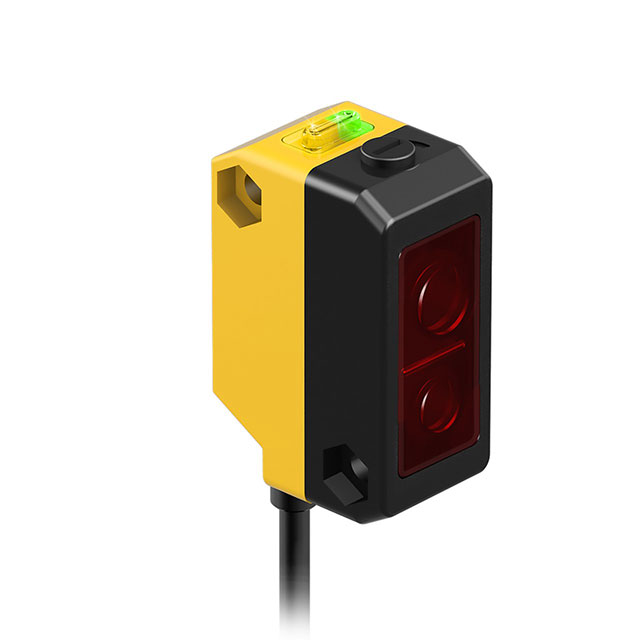

PHOTOELECTRIC SENSOR, WORLD BEAM, 100 MM, PNP, QS18 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

QS18VP6AF100

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, WORLD BEAM, 100 MM, PNP, QS18 SERIES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS18VP6AF100

Adjustment Type	Adjustable
Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IP67
Light Source	Red (660nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Configuration	PNP - Dark-ON/Light-ON
Response Time	700 µs
Sensing Distance	3.937 in
Sensing Distance	100 mm
Sensing Method	Background Suppression
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

QS18VP6 Series

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Sensing Method	Light Source	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Time	Connection Method	Output Configuration	Sensing Distance	Sensing Distance	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Light Source	Cable Length	Cable Length	Adjustment Type
BANNER ENGINEERING QS18VP6LDQ8	-10 °C	50 °C	Diffuse	LED	30 VDC	10 VDC	700 µs	Connector	PNP - Dark-ON/Light-ON	11.811 in	300 mm	NEMA 6P IEC IP67
BANNER ENGINEERING QS18VP6LVQ5			NonPolarized Retroreflective	Red LED	30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON	255.906 in	6.5 m	NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6AF250Q8			Background Suppression	Red	30 VDC	10 VDC	2.8 ms	Connector	PNP - Dark-ON/Light-ON			IP67 NEMA 6P	-40 °C	60 °C	640 nm
BANNER ENGINEERING QS18VP6FQ			Background Suppression		30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON - Selectable	1.969 in	50 mm	NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6LVQ8			NonPolarized Retroreflective	Red LED	30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON	255.906 in	6.5 m	IP67 NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6FF50			Background Suppression	LED	30 VDC	10 VDC	850 µs	Cable	PNP - Dark-ON/Light-ON	1.969 in	50 mm	NEMA 6P IEC IP67	-20 C	70 °C		78.74 in	2 m
BANNER ENGINEERING QS18VP6WQ7			Diffuse	Infrared	30 VDC	10 VDC	600 µs	Connector	PNP - Dark-ON/Light-ON - Selectable	3.937 in	100 mm	NEMA 6P IEC IP67	-20 C	70 °C
BANNER ENGINEERING QS18VP6AF100			Background Suppression	Red (660nm)	30 VDC	10 VDC	700 µs	Cable	PNP - Dark-ON/Light-ON	3.937 in	100 mm	IP67 NEMA 6P	-20 C	70 °C		78.74 in	2 m	Adjustable
BANNER ENGINEERING QS18VP6LV			NonPolarized Retroreflective	Red LED	30 VDC	10 VDC	600 µs	Cable	PNP - Dark-ON/Light-ON	255.906 in	6.5 m	NEMA 6P IEC IP67	-20 C	70 °C		78.74 in	2 m
BANNER ENGINEERING QS18VP6FF100Q5			Background Suppression	LED	30 VDC	10 VDC	850 µs	Connector	PNP - Dark-ON/Light-ON	3.937 in	100 mm	IP67 NEMA 6P IEC IP67	-20 C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 116.00
Newark	Each	1	$ 115.64

Description

General part information

QS18VP6 Series

The QS18 series miniature self-contained Photoelectric Sensor in universal housing. Features 10 to 30VDC operation, with complementary (SPDT) NPN or PNP outputs, depending on model.
