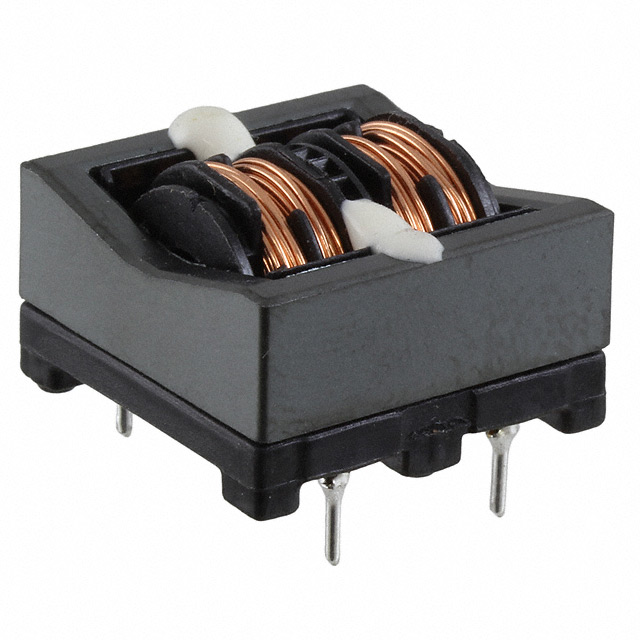

SSR21HS-12115

Active

KEMET

CMC 11.5MH 1.2A 2LN TH

Search across all available documentation for this part.

Active

KEMET

CMC 11.5MH 1.2A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Mounting Type	Voltage Rating - DC	Height (Max)	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Filter Type	Package / Case	Package / Case	Inductance @ Frequency
KEMET SSR21HS-20029	2	Through Hole	250 V	14.5 mm	0.571 in	23 mm	23 mm	0.906 in	0.906 in	2 A	120 °C	-25 °C	100 mOhm	Power Line	4 Lead	Vertical	2.9 mH
KEMET SSR21HS-12115	2	Through Hole	250 V	14.5 mm	0.571 in	23 mm	23 mm	0.906 in	0.906 in	1.2 A	120 °C	-25 °C	270 mOhm	Power Line	4 Lead	Vertical	11.5 mH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11.5 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.2A DCR 270mOhm
