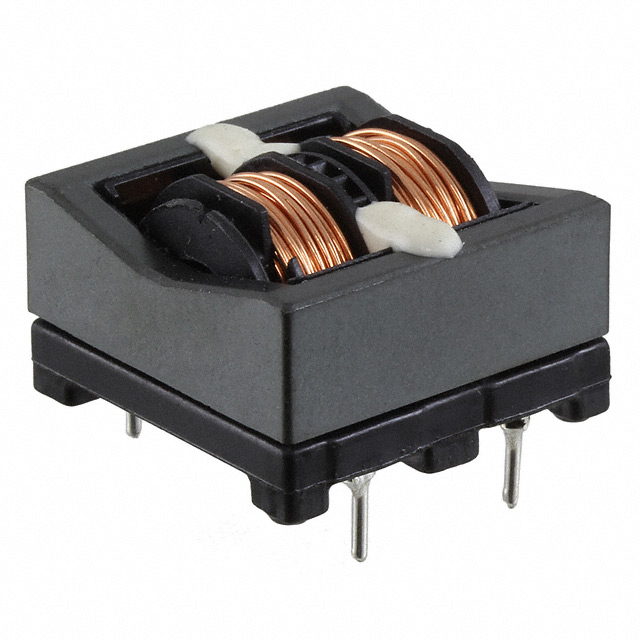

SSR21HS-20029 - SSR21HS

SSR21HS-20029

Active
KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
SSR21HS-20029 - SSR21HS

SSR21HS-20029

Active
KEMET

V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationSSR21HS-20029
Current Rating (Max) [Max]2 A
DC Resistance (DCR) (Max) [Max]100 mOhm
Filter TypePower Line
Height (Max)14.5 mm
Height (Max) [Max]0.571 in
Inductance @ Frequency2.9 mH
Mounting TypeThrough Hole
Number of Lines2
Operating Temperature [Max]120 °C
Operating Temperature [Min]-25 °C
Package / Case4 Lead
Package / CaseVertical
Size / Dimension [x]23 mm
Size / Dimension [x]0.906 in
Size / Dimension [y]23 mm
Size / Dimension [y]0.906 in
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.13
10$ 1.70
25$ 1.38
50$ 1.35
100$ 1.31
420$ 1.28
840$ 1.27
1260$ 1.25
NewarkEach 100$ 1.95
500$ 1.76
1000$ 1.53
2500$ 1.37

Description

General part information

SSR21HS Series

2.9 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 2A DCR 100mOhm
