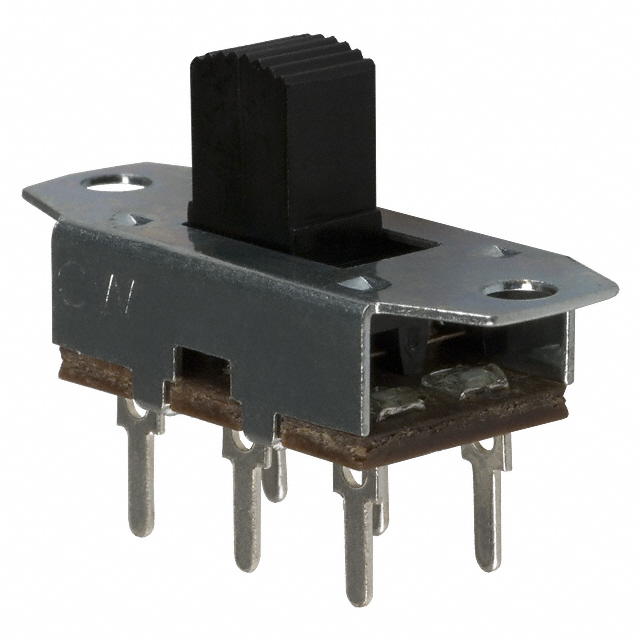

GF-1126-1110
ActiveCW Industries
SWITCH SLIDE DPDT 11A 125V
Deep-Dive with AI
Search across all available documentation for this part.
GF-1126-1110
ActiveCW Industries
SWITCH SLIDE DPDT 11A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-1126-1110 |
|---|---|
| Actuator Length [x] | 8.74 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 11 A, 500 mA |
| Electrical Life | 6000 Cycles |
| Mechanical Life | 10000 Steps |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On |
| Switch Travel | 4.01 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
GF-1126 Series
| Part | Circuit | Contact Finish | Switch Travel | Voltage Rating - DC | Contact Timing | Actuator Type | Mechanical Life | Current Rating (Amps) | Contact Material | Actuator Length [x] | Termination Style | Voltage Rating - AC | Electrical Life | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CW Industries | DPDT | Silver | 4.01 mm | 125 VDC | Not Specified | Standard | 10000 Steps | 11 A 500 mA | Copper | 4.78 mm | Solder Lug | 125 V | 6000 Cycles | On-On | 104 °C | -10 °C | Nylon 6/6 Polyamide (PA66) |
CW Industries | DPDT | Silver | 4.01 mm | 125 VDC | Not Specified | Standard | 10000 Steps | 11 A 500 mA | Copper | 8.74 mm | Solder Lug | 125 V | 6000 Cycles | On-On | 104 °C | -10 °C | Nylon 6/6 Polyamide (PA66) |
CW Industries | DPDT | Silver | 4.01 mm | 125 VDC | Not Specified | Standard | 10000 Steps | 11 A 500 mA | Copper | 4.78 mm | PC Pin | 125 V | 6000 Cycles | On-On | 104 °C | -10 °C | Nylon 6/6 Polyamide (PA66) |
CW Industries | DPDT | Silver | 4.01 mm | 125 VDC | Not Specified | Standard | 10000 Steps | 11 A 500 mA | Copper | 8.74 mm | PC Pin | 125 V | 6000 Cycles | On-On | 104 °C | -10 °C | Nylon 6/6 Polyamide (PA66) |
CW Industries | DPDT | Silver | 4.01 mm | 125 VDC | Not Specified | Standard | 10000 Steps | 11 A 500 mA | Copper | 8.74 mm | Solder Lug | 125 V | 6000 Cycles | On-On | 104 °C | -10 °C | Nylon 6/6 Polyamide (PA66) |
CW Industries | DPDT | Silver | 4.01 mm | 125 VDC | Not Specified | Standard | 10000 Steps | 11 A 500 mA | Copper | 8.74 mm | PC Pin | 125 V | 6000 Cycles | On-On | 104 °C | -10 °C | Nylon 6/6 Polyamide (PA66) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.42 | |
| 10 | $ 2.04 | |||
| 25 | $ 1.89 | |||
| 100 | $ 1.68 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.48 | |||
| 1000 | $ 1.40 | |||
| 2500 | $ 1.32 | |||
| 5000 | $ 1.26 | |||
Description
General part information
GF-1126 Series
Slide Switch DPDT Panel Mount
