GF-1126 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC	Actuator Length	Mounting Type	Voltage Rating - DC	Contact Finish	Circuit	Current Rating	Contact Material	Switch Function	Termination Style	Actuator Type	Electrical Life (Cycles)	Mechanical Life (Cycles)	Switch Travel	Actuator Material
CW Industries GF-1126-0025	104 °C	-10 °C	125 V	4.78 mm	Panel Mount	125 V	Silver	DPDT	0.5 A 11 A	Copper	On-On	Solder Lug	Standard	6000 Cycles	10000 Cycles	4.01 mm	Nylon 6/6 Polyamide (PA66)

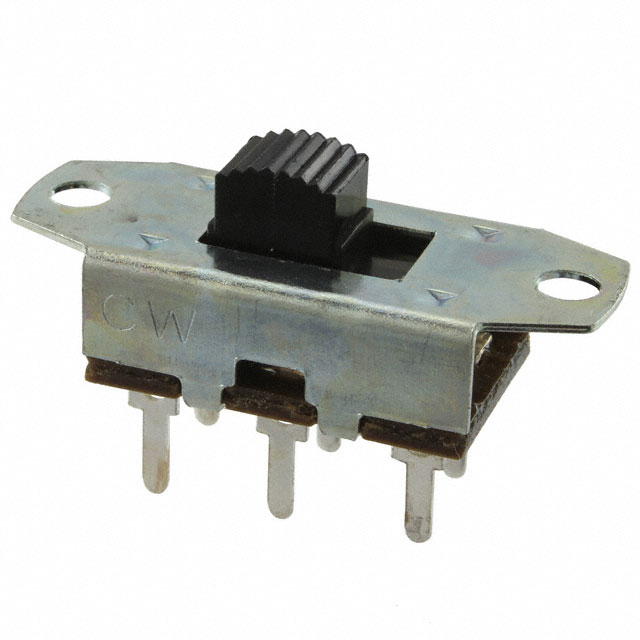

CW Industries GF-1126-0029	104 °C	-10 °C	125 V	4.78 mm	Panel Mount	125 V	Silver	DPDT	0.5 A 11 A	Copper	On-On	PC Pin	Standard	6000 Cycles	10000 Cycles	4.01 mm	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1126-1110	104 °C	-10 °C	125 V	8.74 mm	Panel Mount	125 V	Silver	DPDT	0.5 A 11 A	Copper	On-On	PC Pin	Standard	6000 Cycles	10000 Cycles	4.01 mm	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1126-0033	104 °C	-10 °C	125 V	8.74 mm	Panel Mount	125 V	Silver	DPDT	0.5 A 11 A	Copper	On-On	Solder Lug	Standard	6000 Cycles	10000 Cycles	4.01 mm	Nylon 6/6 Polyamide (PA66)
CW Industries GF-1126-0001	104 °C	-10 °C	125 V	8.74 mm	Panel Mount	125 V	Silver	DPDT	0.5 A 11 A	Copper	On-On	PC Pin	Standard	6000 Cycles	10000 Cycles	4.01 mm	Nylon 6/6 Polyamide (PA66)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
