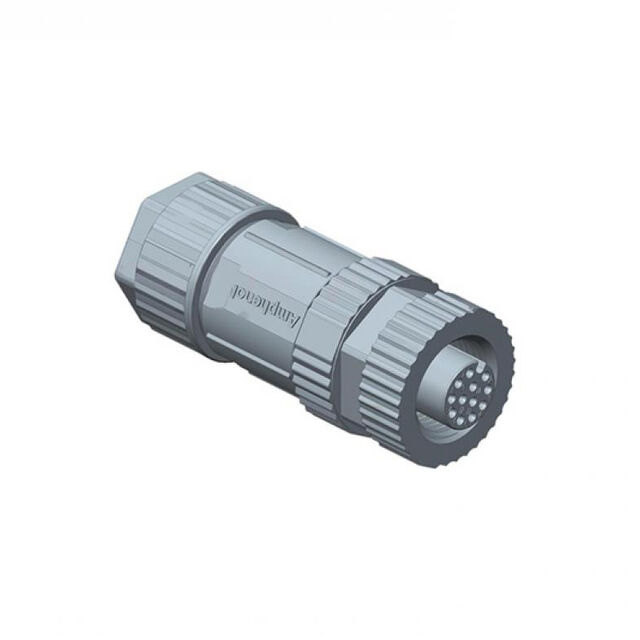

MSBS-05BFFA-SL7001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FI

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, B CODE, METAL, 4A, 05 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, SOLDER, FI

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Features	Orientation	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Color	Ingress Protection	Shell Size - Insert	Contact Finish - Mating	Shell Material	Shielding	Current Rating (Amps)
Amphenol LTW MSBS-05BFFA-SR7001	Free Hanging (In-Line) Right Angle	4.5 mm 6.5 mm	0.177 in 0.256 in	60 VDC	Backshell Coupling Nut	B	Metal	Female Sockets Plug	-40 °C	105 ░C	Copper Alloy	Screw	Silver	IP67 - Dust Tight Waterproof	M12-5	Gold	Metal	Shielded	4 A
Amphenol LTW MSBS-05BFFA-SL7001	Free Hanging (In-Line)	4.5 mm 6.5 mm	0.177 in 0.256 in	60 VDC	Backshell Coupling Nut	B	Metal	Female Sockets Plug	-40 °C	105 ░C	Copper Alloy	Screw	Silver	IP67 - Dust Tight Waterproof	M12-5	Gold	Metal	Shielded	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Plug, Female Sockets Screw
