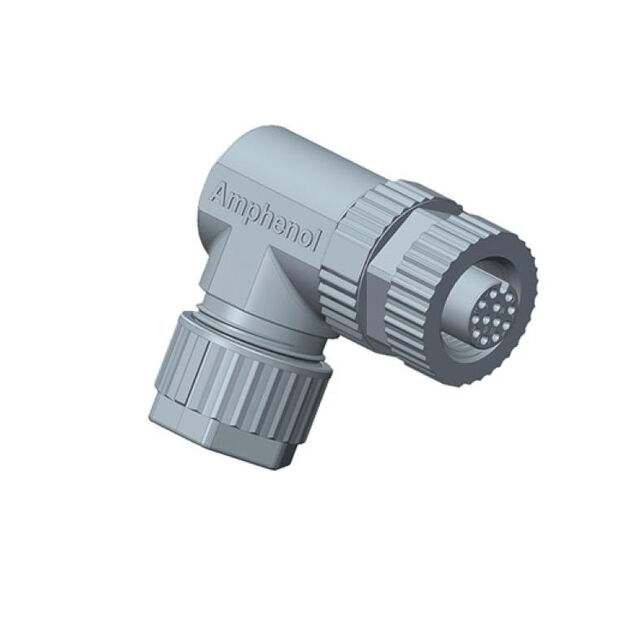

MSBS-05BFFA-SR7001

Active

Amphenol LTW

M SERIES, M12, 4A, 05 PINS, FIEL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 4A, 05 PINS, FIEL

Technical Specifications

Parameters and characteristics for this part

Specification	MSBS-05BFFA-SR7001

Cable Opening [diameter]	4.5 mm, 6.5 mm
Cable Opening [diameter]	0.256 in, 0.177 in
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	B
Primary Material	Metal
Shell Material	Metal
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Screw
Voltage Rating	60 VDC

Part	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Features	Orientation	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Termination	Color	Ingress Protection	Shell Size - Insert	Contact Finish - Mating	Shell Material	Shielding	Current Rating (Amps)
Amphenol LTW MSBS-05BFFA-SR7001	Free Hanging (In-Line) Right Angle	4.5 mm 6.5 mm	0.177 in 0.256 in	60 VDC	Backshell Coupling Nut	B	Metal	Female Sockets Plug	-40 °C	105 ░C	Copper Alloy	Screw	Silver	IP67 - Dust Tight Waterproof	M12-5	Gold	Metal	Shielded	4 A
Amphenol LTW MSBS-05BFFA-SL7001	Free Hanging (In-Line)	4.5 mm 6.5 mm	0.177 in 0.256 in	60 VDC	Backshell Coupling Nut	B	Metal	Female Sockets Plug	-40 °C	105 ░C	Copper Alloy	Screw	Silver	IP67 - Dust Tight Waterproof	M12-5	Gold	Metal	Shielded	4 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 13.81

General part information

5 Position Circular Connector Plug, Female Sockets Screw
