M80-8450545

Active

Harwin Inc.

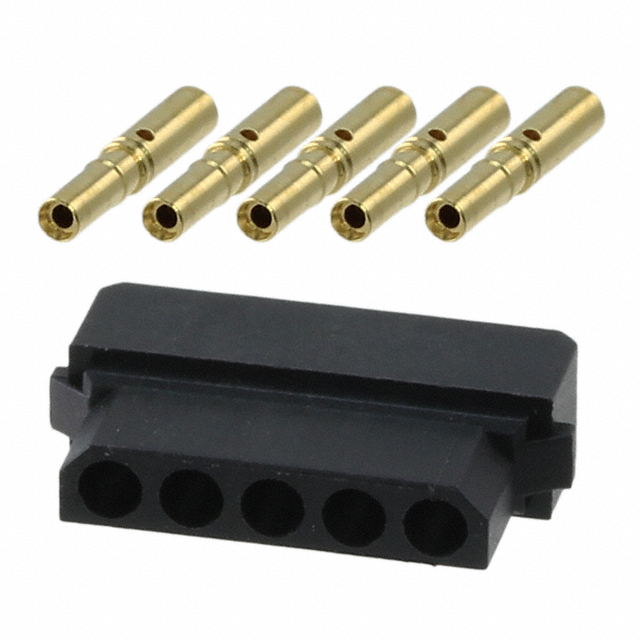

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

5 POS. FEMALE SIL 24-28AWG CABLE CONN. KIT, FOR LATCHES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Mounting Type	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Rows	Wire Type	Pitch [x]	Pitch [x]	Fastening Type	Cable Termination
Harwin Inc. M80-8450645	Receptacle	6	Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Locking Ramp	Crimp
Harwin Inc. M80-8450745	Receptacle	7	Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Locking Ramp	Crimp
Harwin Inc. M80-8450545	Receptacle		Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Locking Ramp	Crimp
Harwin Inc. M80-8450245	Receptacle	2	Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Latch Lock	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
