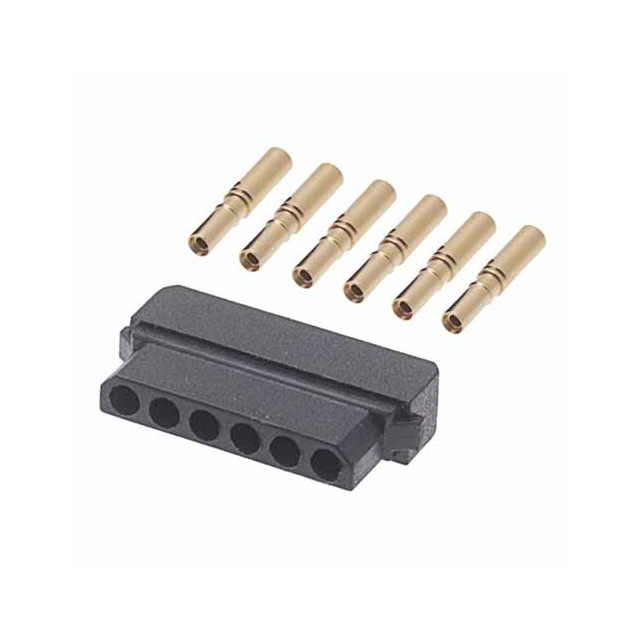

M80-8450645

Active

Harwin Inc.

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 6 CONTACT(S), 1 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, LOCKING, BLACK INSULATOR, SOCKET

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Mounting Type	Contact Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Color	Number of Rows	Wire Type	Pitch [x]	Pitch [x]	Fastening Type	Cable Termination
Harwin Inc. M80-8450645	Receptacle	6	Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Locking Ramp	Crimp
Harwin Inc. M80-8450745	Receptacle	7	Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Locking Ramp	Crimp
Harwin Inc. M80-8450545	Receptacle		Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Locking Ramp	Crimp
Harwin Inc. M80-8450245	Receptacle	2	Free Hanging (In-Line)	Female Socket	Gold	0.3 Ám	11.8 Áin	24 AWG	28 AWG	Black	1	Discrete	0.079 in	2 mm	Latch Lock	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
