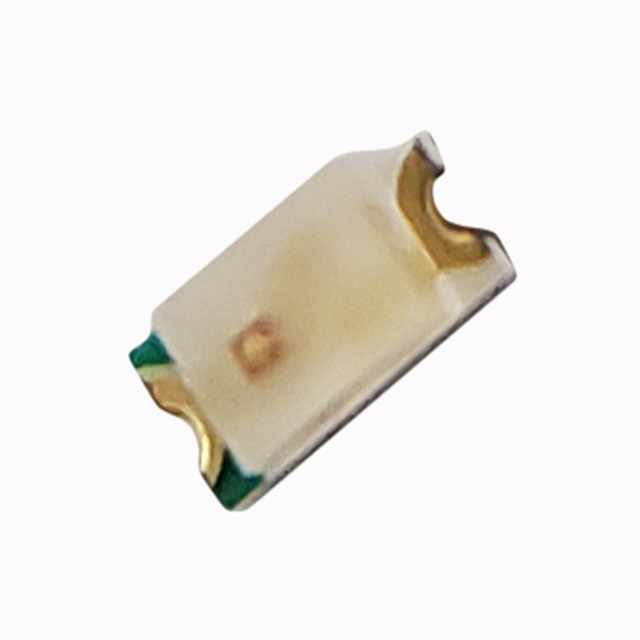

QBLP601-R3-2943

Active

QT Brightek (QTB)

LED RED DIFFUSED 0603 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP601-R3-2943

Active

QT Brightek (QTB)

LED RED DIFFUSED 0603 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
		10	$ 0.16
		100	$ 0.07
		500	$ 0.07
		1000	$ 0.05
		2000	$ 0.05
	Digi-Reel®	1	$ 0.29
		10	$ 0.16
		100	$ 0.07
		500	$ 0.07
		1000	$ 0.05
		2000	$ 0.05
	Tape & Reel (TR)	4000	$ 0.04
		8000	$ 0.03
		12000	$ 0.03
		28000	$ 0.03

Description

General part information

QBLP601 Series

Red 633nm LED Indication - Discrete 2V 0603 (1608 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP601-R3-2943	QBLP601 Series

Color	Red	Red, Green, White, Blue, Yellow-Green, Yellow
Configuration	Standard	Standard
Current - DC Forward (If) (Max)	-	50 mA
Current - Test	20 mA	5 - 20 mA
Height (Max) [Max] [z]	0.7 mm	0.7 - 1.05 mm
Lens Color	White	White, Colorless, Yellow
Lens Size	-	0.7 mm
Lens Size [x]	1.1 mm	1.1 mm
Lens Size [y]	0.8 mm	0.8 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top, Round with Domed Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	105 mcd	15 - 2000 mcd
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	80 C
Orientation	-	Top View
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If	-	0.3 - 0.6 mW/sr
Radiant Intensity (Ie) Min @ If	-	0.2 mW/sr
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	0.8 mm	0.8 mm
Type	-	Infrared (IR), Visible
Viewing Angle	140 °	35 - 140 °
Voltage - Forward (Vf) (Typ)	2 V	1.4 - 3.2 V
Wavelength	-	765 - 940 nm
Wavelength - Dominant	633 nm	470 - 640 nm
Wavelength - Peak	-	632 - 660 nm

QBLP601 Series

LED RED DIFFUSED 0603 SMD

Part	Lens Size [y]	Lens Size [x]	Height (Max) [Max] [z]	Current - Test	Lens Transparency	Viewing Angle	Lens Style	Configuration	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Wavelength - Dominant	Color	Package / Case	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Color	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Orientation	Type	Wavelength - Peak	Lens Size [diameter]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
QT Brightek (QTB) QBLP601-R0-2943	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	620 nm	Red	0603 (1608 Metric)	85 mcd	2 V	White
QT Brightek (QTB) QBLP601-IR4						140 °					Surface Mount			0603 (1608 Metric)		1.8 V		-40 °C	80 C	50 mA	0.6 mW/sr	Top View	Infrared (IR)
QT Brightek (QTB) QBLP601-R35	0.8 mm	1.1 mm	0.7 mm	5 mA	Clear	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	631 nm	Red	0603 (1608 Metric)		1.9 V	Colorless							639 nm
QT Brightek (QTB) QBLP601D-IG			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	520 nm	Green	0603 (1608 Metric)	2000 mcd	3.2 V	Colorless								0.7 mm
QT Brightek (QTB) QBLP601-AG1-2943	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	570 nm	Green	0603 (1608 Metric)	50 mcd	2 V	White
QT Brightek (QTB) QBLP601-IW-2897	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount		White	0603 (1608 Metric)	900 mcd	3 V	Yellow
QT Brightek (QTB) QBLP601-2IR4						140 °					Surface Mount			0603 (1608 Metric)		1.6 V		-40 °C	80 C	50 mA		Top View	Infrared (IR)			765 nm	0.2 mW/sr
QT Brightek (QTB) QBLP601-AG1	0.8 mm	1.1 mm	0.7 mm	20 mA	Clear	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	570 nm	Green	0603 (1608 Metric)	55 mcd	2 V	Colorless
QT Brightek (QTB) QBLP601D-R			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	624 nm	Red	0603 (1608 Metric)	400 mcd, 420 mcd	2 V	Colorless							632 nm	0.7 mm
QT Brightek (QTB) QBLP601D-IB			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	470 nm	Blue	0603 (1608 Metric)	400 mcd	3.2 V	Colorless								0.7 mm
