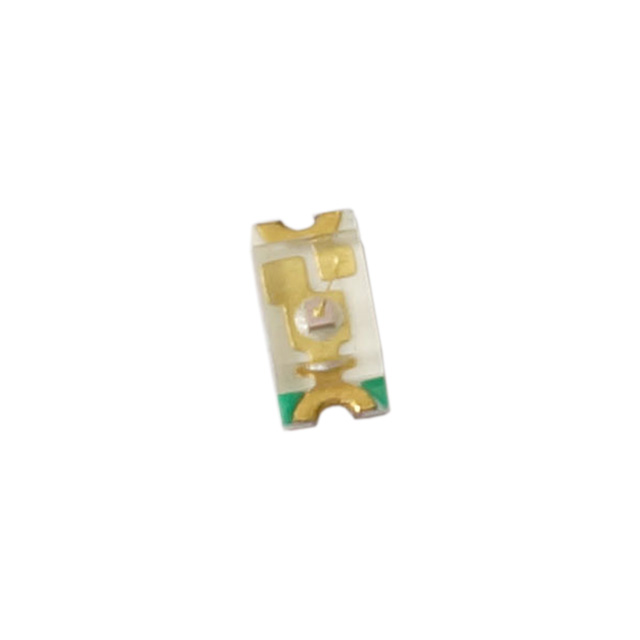

QBLP601-2IR4

Active

QT Brightek (QTB)

0603 IR LED, 765NM, CLEAR LENS,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP601-2IR4

Active

QT Brightek (QTB)

0603 IR LED, 765NM, CLEAR LENS,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QBLP601-2IR4	QBLP601 Series

Color	-	Red, Green, White, Blue, Yellow-Green, Yellow
Configuration	-	Standard
Current - DC Forward (If) (Max) [Max]	50 mA	50 mA
Current - Test	-	5 - 20 mA
Height (Max)	-	0.7 - 1.05 mm
Lens Color	-	White, Colorless, Yellow
Lens Size	-	0.8 mm
Lens Size	-	1.1 mm
Lens Size	-	0.7 mm
Lens Style	-	Rectangle with Flat Top, Round with Domed Top
Lens Transparency	-	Diffused, Clear
Millicandela Rating	-	15 - 2000 mcd
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If	-	0.3 - 0.6 mW/sr
Radiant Intensity (Ie) Min @ If [Min]	0.2 mW/sr	0.2 mW/sr
Size / Dimension	-	1.6 mm
Size / Dimension	-	0.8 mm
Type	Infrared (IR)	Infrared (IR), Visible
Viewing Angle	140 °	35 - 140 °
Voltage - Forward (Vf) (Typ)	1.6 V	1.4 - 3.2 V
Wavelength	765 nm	765 - 940 nm
Wavelength - Dominant	-	470 - 640 nm
Wavelength - Peak	-	632 - 660 nm

QBLP601 Series

LED RED DIFFUSED 0603 SMD

Part	Lens Size [y]	Lens Size [x]	Height (Max) [Max] [z]	Current - Test	Lens Transparency	Viewing Angle	Lens Style	Configuration	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Wavelength - Dominant	Color	Package / Case	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Color	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Orientation	Type	Wavelength - Peak	Lens Size [diameter]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
QT Brightek (QTB) QBLP601-R0-2943	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	620 nm	Red	0603 (1608 Metric)	85 mcd	2 V	White
QT Brightek (QTB) QBLP601-IR4						140 °					Surface Mount			0603 (1608 Metric)		1.8 V		-40 °C	80 C	50 mA	0.6 mW/sr	Top View	Infrared (IR)
QT Brightek (QTB) QBLP601-R35	0.8 mm	1.1 mm	0.7 mm	5 mA	Clear	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	631 nm	Red	0603 (1608 Metric)		1.9 V	Colorless							639 nm
QT Brightek (QTB) QBLP601D-IG			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	520 nm	Green	0603 (1608 Metric)	2000 mcd	3.2 V	Colorless								0.7 mm
QT Brightek (QTB) QBLP601-AG1-2943	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	570 nm	Green	0603 (1608 Metric)	50 mcd	2 V	White
QT Brightek (QTB) QBLP601-IW-2897	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount		White	0603 (1608 Metric)	900 mcd	3 V	Yellow
QT Brightek (QTB) QBLP601-2IR4						140 °					Surface Mount			0603 (1608 Metric)		1.6 V		-40 °C	80 C	50 mA		Top View	Infrared (IR)			765 nm	0.2 mW/sr
QT Brightek (QTB) QBLP601-AG1	0.8 mm	1.1 mm	0.7 mm	20 mA	Clear	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	570 nm	Green	0603 (1608 Metric)	55 mcd	2 V	Colorless
QT Brightek (QTB) QBLP601D-R			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	624 nm	Red	0603 (1608 Metric)	400 mcd, 420 mcd	2 V	Colorless							632 nm	0.7 mm
QT Brightek (QTB) QBLP601D-IB			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	470 nm	Blue	0603 (1608 Metric)	400 mcd	3.2 V	Colorless								0.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.30
		10	$ 0.91
		100	$ 0.68
		500	$ 0.58
		1000	$ 0.55
		2000	$ 0.52
	Digi-Reel®	1	$ 1.30
		10	$ 0.91
		100	$ 0.68
		500	$ 0.58
		1000	$ 0.55
		2000	$ 0.52
	Tape & Reel (TR)	4000	$ 0.49
		8000	$ 0.47
		12000	$ 0.46
		20000	$ 0.45

Description

General part information

QBLP601 Series

Infrared (IR) Emitter 765nm 1.6V 50mA 0.2mW/sr @ 20mA 140° 0603 (1608 Metric)
