QBLP601-R35

Active

QT Brightek (QTB)

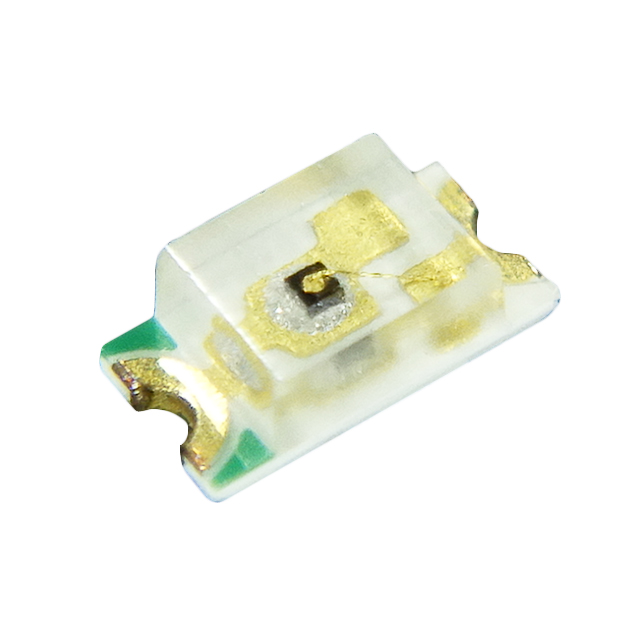

LED RED CLEAR 0603 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBLP601-R35

Active

QT Brightek (QTB)

LED RED CLEAR 0603 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.19
		10	$ 0.13
		100	$ 0.09
		500	$ 0.07
		1000	$ 0.07
		2000	$ 0.06
	Digi-Reel®	1	$ 0.19
		10	$ 0.13
		100	$ 0.09
		500	$ 0.07
		1000	$ 0.07
		2000	$ 0.06
	Tape & Reel (TR)	4000	$ 0.06
		8000	$ 0.05
		12000	$ 0.05
		20000	$ 0.05
		28000	$ 0.05
		40000	$ 0.05
		100000	$ 0.04
		200000	$ 0.04

Description

General part information

QBLP601 Series

Red 631nm LED Indication - Discrete 1.9V 0603 (1608 Metric)

Documents

Technical documentation and resources

Datasheet

Specification	QBLP601-R35	QBLP601 Series

Color	Red	Red, Green, White, Blue, Yellow-Green, Yellow
Configuration	Standard	Standard
Current - DC Forward (If) (Max)	-	50 mA
Current - Test	5 mA	5 - 20 mA
Height (Max) [Max] [z]	0.7 mm	0.7 - 1.05 mm
Lens Color	Colorless	White, Colorless, Yellow
Lens Size	-	0.7 mm
Lens Size [x]	1.1 mm	1.1 mm
Lens Size [y]	0.8 mm	0.8 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top, Round with Domed Top
Lens Transparency	Clear	Diffused, Clear
Millicandela Rating	-	15 - 2000 mcd
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	-40 °C
Operating Temperature	-	80 C
Orientation	-	Top View
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Radiant Intensity (Ie) Min @ If	-	0.3 - 0.6 mW/sr
Radiant Intensity (Ie) Min @ If	-	0.2 mW/sr
Size / Dimension [x]	1.6 mm	1.6 mm
Size / Dimension [y]	0.8 mm	0.8 mm
Type	-	Infrared (IR), Visible
Viewing Angle	140 °	35 - 140 °
Voltage - Forward (Vf) (Typ)	1.9 V	1.4 - 3.2 V
Wavelength	-	765 - 940 nm
Wavelength - Dominant	631 nm	470 - 640 nm
Wavelength - Peak	639 nm	632 - 660 nm

Part

Lens Size [y]

Lens Size [x]

Height (Max) [Max] [z]

Current - Test

Lens Transparency

Viewing Angle

Lens Style

Configuration

Size / Dimension [x]

Size / Dimension [y]

Mounting Type

Wavelength - Dominant

Color

Package / Case

Millicandela Rating

Voltage - Forward (Vf) (Typ)

Lens Color

Operating Temperature [Min]

Operating Temperature [Max]

Current - DC Forward (If) (Max) [Max]

Radiant Intensity (Ie) Min @ If

Orientation

Type

Wavelength - Peak

Lens Size [diameter]

Wavelength

Radiant Intensity (Ie) Min @ If [Min]

QT Brightek (QTB)

QBLP601-R0-2943

0.8 mm

1.1 mm

0.7 mm

20 mA

Diffused

140 °

Rectangle with Flat Top

Standard

1.6 mm

0.8 mm

Surface Mount

620 nm

Red

0603 (1608 Metric)

85 mcd

2 V

White

QT Brightek (QTB)

QBLP601-IR4

140 °

Surface Mount

0603 (1608 Metric)

1.8 V

-40 °C

80 C

50 mA

0.6 mW/sr

Top View

Infrared (IR)

QT Brightek (QTB)

QBLP601-R35

0.8 mm

1.1 mm

0.7 mm

5 mA

Clear

140 °

Rectangle with Flat Top

Standard

1.6 mm

0.8 mm

Surface Mount

631 nm

Red

0603 (1608 Metric)

1.9 V

Colorless

639 nm

QT Brightek (QTB)

QBLP601D-IG

1.05 mm

20 mA

Clear

35 °

Round with Domed Top

Standard

1.6 mm

0.8 mm

Surface Mount

520 nm

Green

0603 (1608 Metric)

2000 mcd

3.2 V

Colorless

0.7 mm

QT Brightek (QTB)

QBLP601-AG1-2943

0.8 mm

1.1 mm

0.7 mm

20 mA

Diffused

140 °

Rectangle with Flat Top

Standard

1.6 mm

0.8 mm

Surface Mount

570 nm

Green

0603 (1608 Metric)

50 mcd

2 V

White

QT Brightek (QTB)

QBLP601-IW-2897

0.8 mm

1.1 mm

0.7 mm

20 mA

Diffused

140 °

Rectangle with Flat Top

Standard

1.6 mm

0.8 mm

Surface Mount

White

0603 (1608 Metric)

900 mcd

3 V

Yellow

QT Brightek (QTB)

QBLP601-2IR4

140 °

Surface Mount

0603 (1608 Metric)

1.6 V

-40 °C

80 C

50 mA

Top View

Infrared (IR)

765 nm

0.2 mW/sr

QT Brightek (QTB)

QBLP601-AG1

0.8 mm

1.1 mm

0.7 mm

20 mA

Clear

140 °

Rectangle with Flat Top

Standard

1.6 mm

0.8 mm

Surface Mount

570 nm

Green

0603 (1608 Metric)

55 mcd

2 V

Colorless

QT Brightek (QTB)

QBLP601D-R

1.05 mm

20 mA

Clear

35 °

Round with Domed Top

Standard

1.6 mm

0.8 mm

Surface Mount

624 nm

Red

0603 (1608 Metric)

400 mcd, 420 mcd

2 V

Colorless

632 nm

0.7 mm

QT Brightek (QTB)

QBLP601D-IB

1.05 mm

20 mA

Clear

35 °

Round with Domed Top

Standard

1.6 mm

0.8 mm

Surface Mount

470 nm

Blue

0603 (1608 Metric)

400 mcd

3.2 V

Colorless

0.7 mm

Part	Lens Size [y]	Lens Size [x]	Height (Max) [Max] [z]	Current - Test	Lens Transparency	Viewing Angle	Lens Style	Configuration	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Wavelength - Dominant	Color	Package / Case	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Color	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Radiant Intensity (Ie) Min @ If	Orientation	Type	Wavelength - Peak	Lens Size [diameter]	Wavelength	Radiant Intensity (Ie) Min @ If [Min]
QT Brightek (QTB) QBLP601-R0-2943	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	620 nm	Red	0603 (1608 Metric)	85 mcd	2 V	White
QT Brightek (QTB) QBLP601-IR4						140 °					Surface Mount			0603 (1608 Metric)		1.8 V		-40 °C	80 C	50 mA	0.6 mW/sr	Top View	Infrared (IR)
QT Brightek (QTB) QBLP601-R35	0.8 mm	1.1 mm	0.7 mm	5 mA	Clear	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	631 nm	Red	0603 (1608 Metric)		1.9 V	Colorless							639 nm
QT Brightek (QTB) QBLP601D-IG			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	520 nm	Green	0603 (1608 Metric)	2000 mcd	3.2 V	Colorless								0.7 mm
QT Brightek (QTB) QBLP601-AG1-2943	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	570 nm	Green	0603 (1608 Metric)	50 mcd	2 V	White
QT Brightek (QTB) QBLP601-IW-2897	0.8 mm	1.1 mm	0.7 mm	20 mA	Diffused	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount		White	0603 (1608 Metric)	900 mcd	3 V	Yellow
QT Brightek (QTB) QBLP601-2IR4						140 °					Surface Mount			0603 (1608 Metric)		1.6 V		-40 °C	80 C	50 mA		Top View	Infrared (IR)			765 nm	0.2 mW/sr
QT Brightek (QTB) QBLP601-AG1	0.8 mm	1.1 mm	0.7 mm	20 mA	Clear	140 °	Rectangle with Flat Top	Standard	1.6 mm	0.8 mm	Surface Mount	570 nm	Green	0603 (1608 Metric)	55 mcd	2 V	Colorless
QT Brightek (QTB) QBLP601D-R			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	624 nm	Red	0603 (1608 Metric)	400 mcd, 420 mcd	2 V	Colorless							632 nm	0.7 mm
QT Brightek (QTB) QBLP601D-IB			1.05 mm	20 mA	Clear	35 °	Round with Domed Top	Standard	1.6 mm	0.8 mm	Surface Mount	470 nm	Blue	0603 (1608 Metric)	400 mcd	3.2 V	Colorless								0.7 mm
