Apex Tool Group

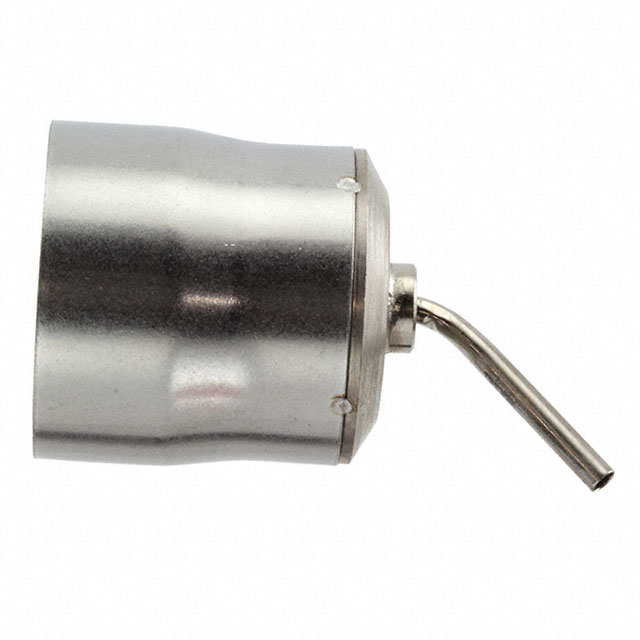

HEAT GUNS & NOZZLES TNRB 17 ROUND NOZZLE 1.7MM X 45 F. WTHA

Search across all available documentation for this part.

Apex Tool Group

HEAT GUNS & NOZZLES TNRB 17 ROUND NOZZLE 1.7MM X 45 F. WTHA

Technical Specifications

Parameters and characteristics for this part

Specification	T0058768745N

For Use With/Related Products	Weller® WTHA1 Hot Air Station
Height [z]	124.46 mm
Height [z]	124.46 mm
Length	211 mm
Length	8.307 "
Temperature Range [Max]	1112 °F
Temperature Range [Min]	50 °C
Tip Chip Size	Chip
Tip Shape	Pencil
Tip Type	Rework (Hot Air)
Width [x]	160 mm
Width [x]	6.299 in

Part	Tip Type	Width [x]	Width [x]	For Use With/Related Products	Tip Shape	Tip Chip Size	Length	Length	Height [z]	Height [z]	Temperature Range [Min]	Temperature Range [Max]	Accessory Type
Apex Tool Group T0058768745N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F
Apex Tool Group T0058768727N
Apex Tool Group T0058768744N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F
Apex Tool Group T0058768747N													Nozzle Adapter
Apex Tool Group T0058768726N													Tip Changing Tool
Apex Tool Group T0058768765													Barrel
Apex Tool Group T0058768742N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F
Apex Tool Group T0058768743N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 69.00

General part information

HEAT GUNS & NOZZLES TNRB 17 ROUND NOZZLE 1.7MM X 45 F. WTHA

Technical documentation and resources

No documents available
