Apex Tool Group

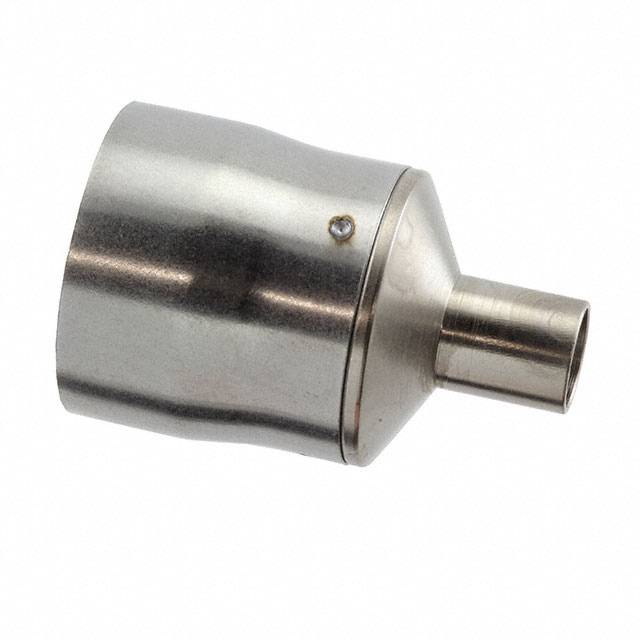

TNR70 ROUND NOZZLE 7MM

Search across all available documentation for this part.

Apex Tool Group

TNR70 ROUND NOZZLE 7MM

Technical Specifications

Parameters and characteristics for this part

Specification	T0058768744N

For Use With/Related Products	Weller® WTHA1 Hot Air Station
Height [z]	124.46 mm
Height [z]	124.46 mm
Length	211 mm
Length	8.307 "
Temperature Range [Max]	1112 °F
Temperature Range [Min]	50 °C
Tip Chip Size	Chip
Tip Shape	Pencil
Tip Type	Rework (Hot Air)
Width [x]	160 mm
Width [x]	6.299 in

Part	Tip Type	Width [x]	Width [x]	For Use With/Related Products	Tip Shape	Tip Chip Size	Length	Length	Height [z]	Height [z]	Temperature Range [Min]	Temperature Range [Max]	Accessory Type
Apex Tool Group T0058768745N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F
Apex Tool Group T0058768727N
Apex Tool Group T0058768744N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F
Apex Tool Group T0058768747N													Nozzle Adapter
Apex Tool Group T0058768726N													Tip Changing Tool
Apex Tool Group T0058768765													Barrel
Apex Tool Group T0058768742N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F
Apex Tool Group T0058768743N	Rework (Hot Air)	160 mm	6.299 in	Weller® WTHA1 Hot Air Station	Pencil	Chip	211 mm	8.307 "	124.46 mm	124.46 mm	50 °C	1112 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 31.50

General part information

TNR70 ROUND NOZZLE 7MM
