M50-3121145
ActiveHarwin Inc.

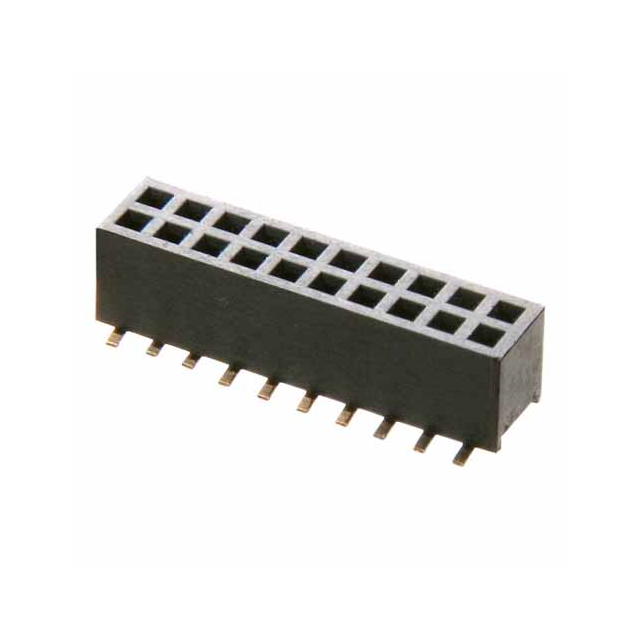

11+11 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3121145
ActiveHarwin Inc.
11+11 POS. FEMALE DIL VERTICAL SMT CONN. ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3121145 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 3.6 mm |
| Insulation Height | 0.142 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6.18 mm, 5.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 22 positions |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-312 Series
22 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Documents
Technical documentation and resources
