M50-3122545
ActiveHarwin Inc.

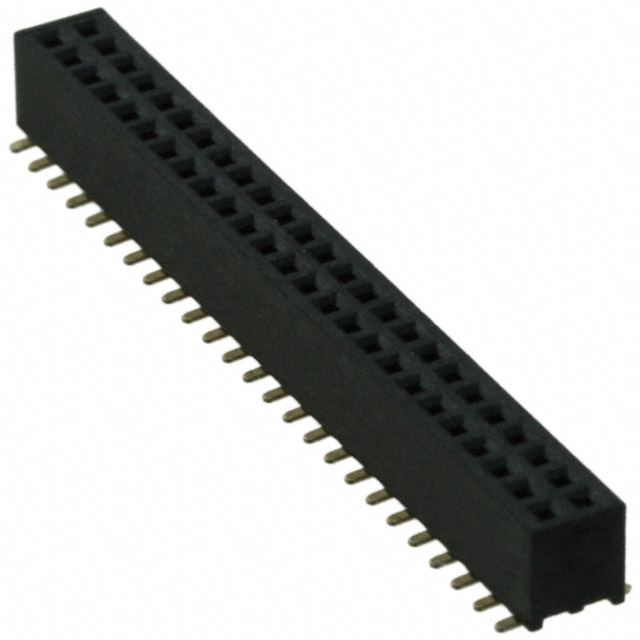

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 50 CONTACTS, SURFACE MOUNT, ARCHER M50 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
M50-3122545
ActiveHarwin Inc.
PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 50 CONTACTS, SURFACE MOUNT, ARCHER M50 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3122545 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 3.6 mm |
| Insulation Height | 0.142 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mated Stacking Heights | 6.18 mm, 5.5 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-312 Series
50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
