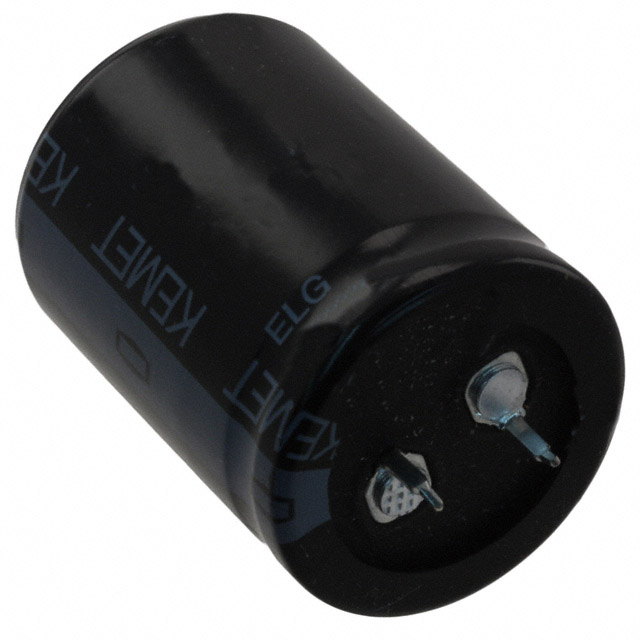

ELG108M200AS4AA

Active

KEMET

CAP ALUM 1000UF 20% 200V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 20% 200V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Specification	ELG108M200AS4AA

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	90 mOhm
Height - Seated (Max) [Max]	42 mm
Height - Seated (Max) [Max]	1.654 in
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Can - Snap-In
Polarization	Polar
Ripple Current @ High Frequency	3.45 A
Ripple Current @ Low Frequency	2.3 A
Size / Dimension [diameter]	30 mm
Size / Dimension [diameter]	1.181 inches
Tolerance	20 %
Voltage - Rated	200 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Lifetime @ Temp.	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ELG108M100VR2AA	25 mm	0.984 "	Radial Can - Snap-In	1000 µF	-40 °C	105 ░C	Polar	2000 Hrs	Through Hole	0.394 in	10 mm	100 V	20 %	General Purpose
KEMET ELG108M100AR2AA	25 mm	0.984 "	Radial Can - Snap-In	1000 µF	-40 °C	105 ░C	Polar	2000 Hrs	Through Hole	0.394 in	10 mm	100 V	20 %	General Purpose	1.5 A	1.74 A
KEMET ELG108M200AS4AA	30 mm	1.181 inches	Radial Can - Snap-In	1000 µF	-25 °C	105 ░C	Polar	2000 Hrs	Through Hole	0.394 in	10 mm	200 V	20 %	General Purpose	2.3 A	3.45 A	90 mOhm	42 mm	1.654 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 90mOhm @ 20kHz 2000 Hrs @ 105°C
