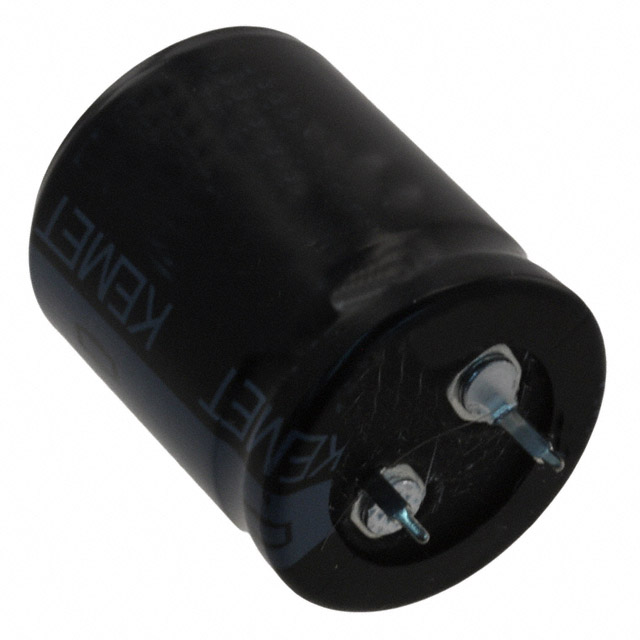

ELG108M100VR2AA

Active

KEMET

CAP ALUM 1000UF 20% 100V SNAP TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 1000UF 20% 100V SNAP TH

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Polarization	Lifetime @ Temp.	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	Applications	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET ELG108M100VR2AA	25 mm	0.984 "	Radial Can - Snap-In	1000 µF	-40 °C	105 ░C	Polar	2000 Hrs	Through Hole	0.394 in	10 mm	100 V	20 %	General Purpose
KEMET ELG108M100AR2AA	25 mm	0.984 "	Radial Can - Snap-In	1000 µF	-40 °C	105 ░C	Polar	2000 Hrs	Through Hole	0.394 in	10 mm	100 V	20 %	General Purpose	1.5 A	1.74 A
KEMET ELG108M200AS4AA	30 mm	1.181 inches	Radial Can - Snap-In	1000 µF	-25 °C	105 ░C	Polar	2000 Hrs	Through Hole	0.394 in	10 mm	200 V	20 %	General Purpose	2.3 A	3.45 A	90 mOhm	42 mm	1.654 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.92
Newark	Each	1000	$ 2.02
		2500	$ 1.88

General part information

1000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
