AUIRF540Z

Active

Infineon Technologies

INFINEON’S AUIRF540Z MOSFET WITH ADVANCED PROCESS TECHNOLOGY, ULTRA-LOW ON-RESISTANCE, 175°C OPERATING TEMP, AND AUTOMOTIVE QUALIFIED. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

AUIRF540Z

Active

Infineon Technologies

INFINEON’S AUIRF540Z MOSFET WITH ADVANCED PROCESS TECHNOLOGY, ULTRA-LOW ON-RESISTANCE, 175°C OPERATING TEMP, AND AUTOMOTIVE QUALIFIED. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRF540Z

Current - Continuous Drain (Id) @ 25°C	36 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	63 nC
Input Capacitance (Ciss) (Max) @ Vds	1770 pF
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

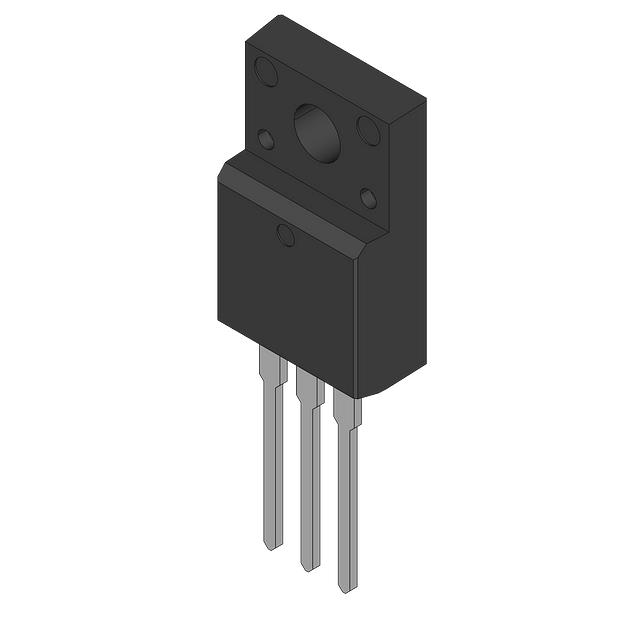

Package / Case	TO-220-3
Power Dissipation (Max) [Max]	92 W
Rds On (Max) @ Id, Vgs	26.5 mOhm
Supplier Device Package	TO-220AB
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

AUIRF540 Series

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Mounting Type	Technology	FET Type	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Vgs (Max)	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id
Infineon Technologies AUIRF540Z	63 nC	Through Hole	MOSFET (Metal Oxide)	N-Channel	36 A	TO-220AB	20 V	26.5 mOhm	10 V	-55 °C	175 ░C	TO-220-3	92 W	100 V	1770 pF	4 V
Infineon Technologies AUIRF540ZSTRL	63 nC	Surface Mount	MOSFET (Metal Oxide)	N-Channel	36 A		20 V	26.5 mOhm	10 V	-55 °C	175 ░C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	92 W	100 V	1770 pF	4 V
Infineon Technologies AUIRF540ZS	63 nC	Surface Mount	MOSFET (Metal Oxide)	N-Channel	36 A		20 V	26.5 mOhm	10 V	-55 °C	175 ░C	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	92 W	100 V	1770 pF	4 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.19
		10	$ 2.10
		100	$ 1.59
Newark	Each	1	$ 3.82
		10	$ 3.28
		25	$ 2.73
		50	$ 2.19
		100	$ 2.05
		250	$ 2.01
		500	$ 1.96

Description

General part information

AUIRF540 Series

The AUIRF540Z is a 100V single N-channel HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. It features combine to make this design an extremely efficient and reliable device for wide variety of applications.
