SMH-108-02-G-D

Active

Samtec Inc.

CONN RCPT 16POS 0.1 GOLD SMD R/A

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 16POS 0.1 GOLD SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-108-02-G-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Fastening Type	Number of Rows	Contact Finish - Post	Contact Material	Insulation Color	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Contact Type	Number of Positions Loaded	Termination	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Post
Samtec Inc. SMH-108-02-G-D	2.54 mm	0.1 in	0.195 in	4.95 mm	Push-Pull	2	Gold	Phosphor Bronze	Black	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Forked	All	Solder	Square	Surface Mount Right Angle	0.1 in	2.54 mm	0.51 µm	20 µin	16	-55 °C	125 °C	Receptacle	Flash
Samtec Inc. SMH-108-02-T-D-TR	2.54 mm	0.1 in	0.195 in	4.95 mm	Push-Pull	2	Tin	Phosphor Bronze	Black	Liquid Crystal Polymer (LCP)		UL94 V-0	Forked	All	Solder	Square	Surface Mount Right Angle	0.1 in	2.54 mm			16	-55 °C	105 ░C	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

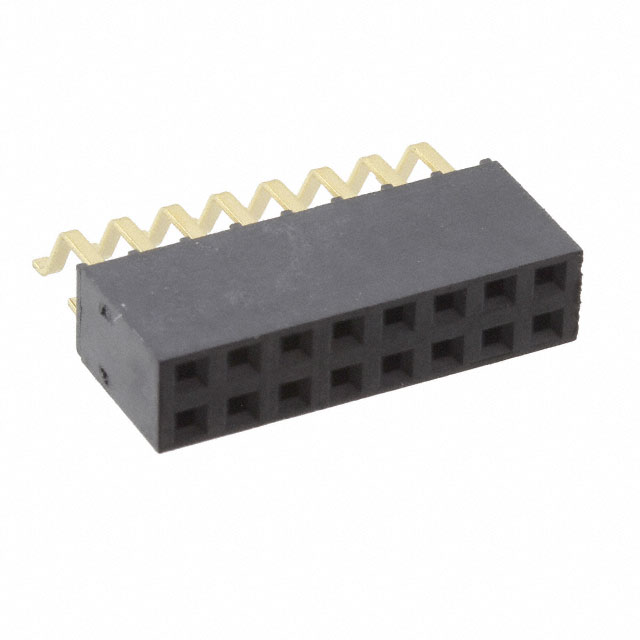

16 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
