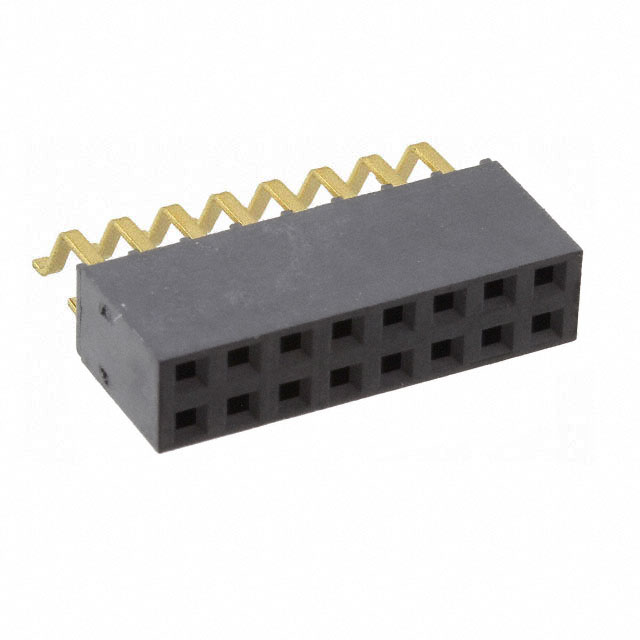

SMH-108-02-T-D-TR

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Search across all available documentation for this part.

Active

Samtec Inc.

.100" HORIZONTAL SURFACE MOUNT S

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-108-02-T-D-TR

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Fastening Type	Number of Rows	Contact Finish - Post	Contact Material	Insulation Color	Insulation Material	Contact Finish - Mating	Material Flammability Rating	Contact Type	Number of Positions Loaded	Termination	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish Thickness - Post
Samtec Inc. SMH-108-02-G-D	2.54 mm	0.1 in	0.195 in	4.95 mm	Push-Pull	2	Gold	Phosphor Bronze	Black	Liquid Crystal Polymer (LCP)	Gold	UL94 V-0	Forked	All	Solder	Square	Surface Mount Right Angle	0.1 in	2.54 mm	0.51 µm	20 µin	16	-55 °C	125 °C	Receptacle	Flash
Samtec Inc. SMH-108-02-T-D-TR	2.54 mm	0.1 in	0.195 in	4.95 mm	Push-Pull	2	Tin	Phosphor Bronze	Black	Liquid Crystal Polymer (LCP)		UL94 V-0	Forked	All	Solder	Square	Surface Mount Right Angle	0.1 in	2.54 mm			16	-55 °C	105 ░C	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	325	$ 1.96

General part information

16 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Tin
