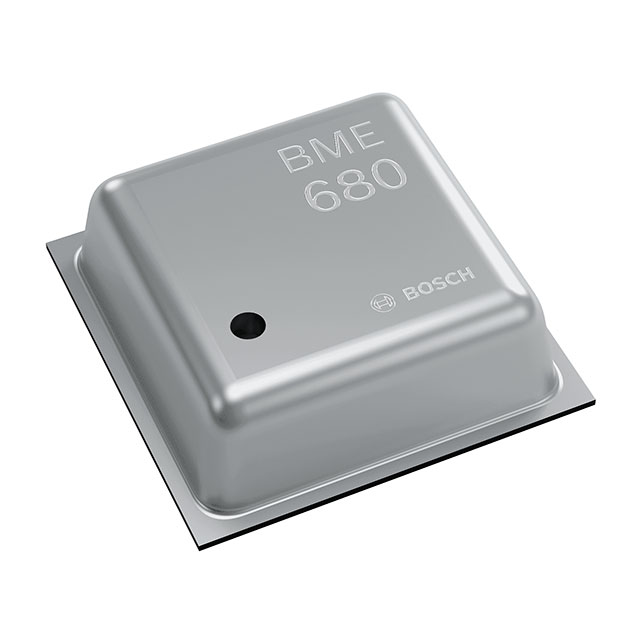

BME680

Bosch Sensortec

SENSOR GAS/HUM/PRES/TEMP I2C SPI

Search across all available documentation for this part.

Bosch Sensortec

SENSOR GAS/HUM/PRES/TEMP I2C SPI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas, Humidity, Pressure, Temperature Sensor I2C, SPI Output

Technical documentation and resources

Specification	BME680	BME680 Series

Contents	-	Board(s)
Interconnect System	-	Shuttle Board 3.0 Socket
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C, SPI	I2C, SPI
Primary Attributes	-	85 - 1100 hPa
Primary Attributes	-	-40 - 300 hPa
Secondary Attributes	-	I2C/SPI Interface(s)
Sensor Type	Pressure, Temperature, Gas, Humidity	Pressure, Temperature, Gas, Humidity
Type	-	Sensor
Utilized IC / Part	-	BME680

Part	Interconnect System	Secondary Attributes	Type	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Contents	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
Bosch Sensortec SHUTTLE BOARD 3.0 BME680	Shuttle Board 3.0 Socket	I2C/SPI Interface(s)	Sensor	85 °C, 100 % RH, 1100 hPa	-40 °C, 0 % RH, 300 hPa	BME680	Board(s)
Bosch Sensortec BME680								Gas, Humidity, Pressure, Temperature	85 °C	-40 °C	I2C, SPI
Bosch Sensortec SHUTTLE BOARD BME680			Sensor			BME680	Board(s)
