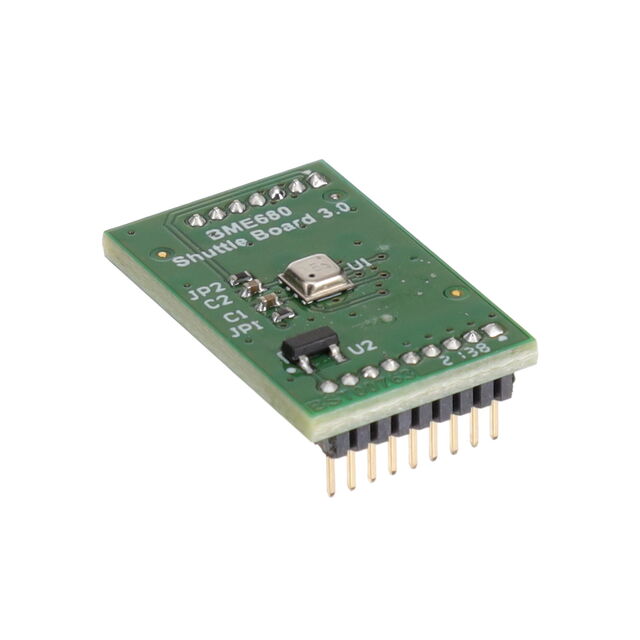

SHUTTLE BOARD 3.0 BME680

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 15.88

General part information

BME680 Air Quality, Humidity, Pressure, Temperature Sensor Platform Evaluation Expansion Board

Technical documentation and resources

Specification	SHUTTLE BOARD 3.0 BME680	BME680 Series

Contents	Board(s)	Board(s)
Interconnect System	Shuttle Board 3.0 Socket	Shuttle Board 3.0 Socket
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Primary Attributes [Max]	1100 hPa, 100 % RH, 85 °C	85 - 1100 hPa
Primary Attributes [Min]	300 hPa, 0 % RH, -40 °C	-40 - 300 hPa
Secondary Attributes	I2C/SPI Interface(s)	I2C/SPI Interface(s)
Sensor Type	-	Pressure, Temperature, Gas, Humidity
Type	Sensor	Sensor
Utilized IC / Part	BME680	BME680

Part	Interconnect System	Secondary Attributes	Type	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Contents	Sensor Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type
Bosch Sensortec SHUTTLE BOARD 3.0 BME680	Shuttle Board 3.0 Socket	I2C/SPI Interface(s)	Sensor	85 °C, 100 % RH, 1100 hPa	-40 °C, 0 % RH, 300 hPa	BME680	Board(s)
Bosch Sensortec BME680								Gas, Humidity, Pressure, Temperature	85 °C	-40 °C	I2C, SPI
Bosch Sensortec SHUTTLE BOARD BME680			Sensor			BME680	Board(s)
