TBU-04-W2

Active

Adam Tech

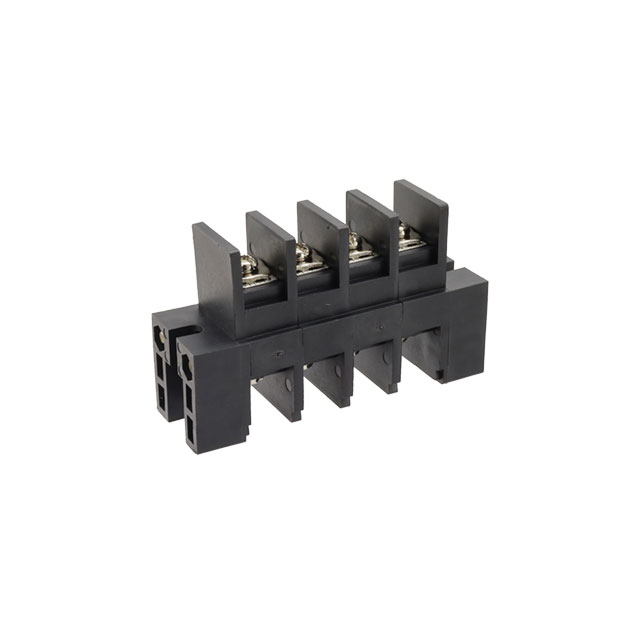

TERMINAL BLOCK, 4 POSITION

Search across all available documentation for this part.

Active

Adam Tech

TERMINAL BLOCK, 4 POSITION

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Circuit 0.512" (13.00mm) Barrier Block Connector Screws with Captive Plate

Technical documentation and resources

Specification	TBU-04-W2	TBU-04 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Screw	Screw
Color	Black	Black
Current Rating (Amps)	50 A	30 - 115 A
Features	Flange	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	4	4
Number of Rows	1	1
Number of Wire Entries	4	4
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.512 in	0.433 - 0.63 in
Pitch [x]	13 mm	11 - 16 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel, Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws, Screws with Captive Plate
Voltage Rating	600 V	300 - 600 V
Wire Gauge [Max]	22 AWG	8 - 22 AWG
Wire Gauge [Min]	8 AWG	2 - 10 AWG

Part	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Block Type	Barrier Type	Number of Circuits	Terminal Screw Material	Current Rating (Amps)	Material - Insulation	Number of Wire Entries	Pitch [x]	Pitch [x]	Top Termination	Bottom Termination	Voltage Rating	Features	Number of Rows	Terminal Screw Finish	Material Flammability Rating
Adam Tech TBU-04-W3-CC	Chassis, Panel	6 AWG	14 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	65 A	Polybutylene Terephthalate (PBT)	4	0.63 in	16 mm	Screws	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W3-CCS	Chassis, Panel	6 AWG	14 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	65 A	Polybutylene Terephthalate (PBT)	4	0.63 in	16 mm	Screws	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W1	Chassis, Panel	10 AWG	22 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	30 A	Polybutylene Terephthalate (PBT)	4	0.433 in	11 mm	Screws with Captive Plate	Screw	300 VDC	Flange	1		UL94 V-0
Adam Tech TBU-04-W2	Chassis, Panel	8 AWG	22 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	50 A	Polybutylene Terephthalate (PBT)	4	0.512 in	13 mm	Screws with Captive Plate	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W4-CCS	Chassis, Panel	2 AWG	8 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	115 A	Polybutylene Terephthalate (PBT)	4			Screws	Screw	600 V	Flange	1	Zinc	UL94 V-0
