TBU-04-W4-CCS

Active

Adam Tech

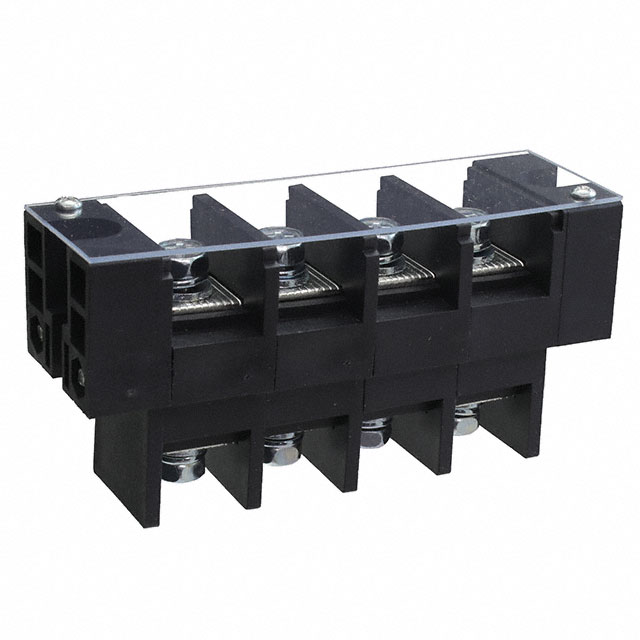

TERMINAL BLOCK, 4 POSITION

Search across all available documentation for this part.

Active

Adam Tech

TERMINAL BLOCK, 4 POSITION

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TBU-04-W4-CCS	TBU-04 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Screw	Screw
Color	Black	Black
Current Rating (Amps)	115 A	30 - 115 A
Features	Flange	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	4	4
Number of Rows	1	1
Number of Wire Entries	4	4
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	-	0.433 - 0.63 in
Pitch	-	11 - 16 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Nickel, Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws, Screws with Captive Plate
Voltage Rating	600 V	300 - 600 V
Wire Gauge [Max]	8 AWG	8 - 22 AWG
Wire Gauge [Min]	2 AWG	2 - 10 AWG

TERMINAL BLOCK, 4 POSITION

Part	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Block Type	Barrier Type	Number of Circuits	Terminal Screw Material	Current Rating (Amps)	Material - Insulation	Number of Wire Entries	Pitch [x]	Pitch [x]	Top Termination	Bottom Termination	Voltage Rating	Features	Number of Rows	Terminal Screw Finish	Material Flammability Rating
Adam Tech TBU-04-W3-CC	Chassis, Panel	6 AWG	14 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	65 A	Polybutylene Terephthalate (PBT)	4	0.63 in	16 mm	Screws	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W3-CCS	Chassis, Panel	6 AWG	14 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	65 A	Polybutylene Terephthalate (PBT)	4	0.63 in	16 mm	Screws	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W1	Chassis, Panel	10 AWG	22 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	30 A	Polybutylene Terephthalate (PBT)	4	0.433 in	11 mm	Screws with Captive Plate	Screw	300 VDC	Flange	1		UL94 V-0
Adam Tech TBU-04-W2	Chassis, Panel	8 AWG	22 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	50 A	Polybutylene Terephthalate (PBT)	4	0.512 in	13 mm	Screws with Captive Plate	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W4-CCS	Chassis, Panel	2 AWG	8 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	115 A	Polybutylene Terephthalate (PBT)	4			Screws	Screw	600 V	Flange	1	Zinc	UL94 V-0
