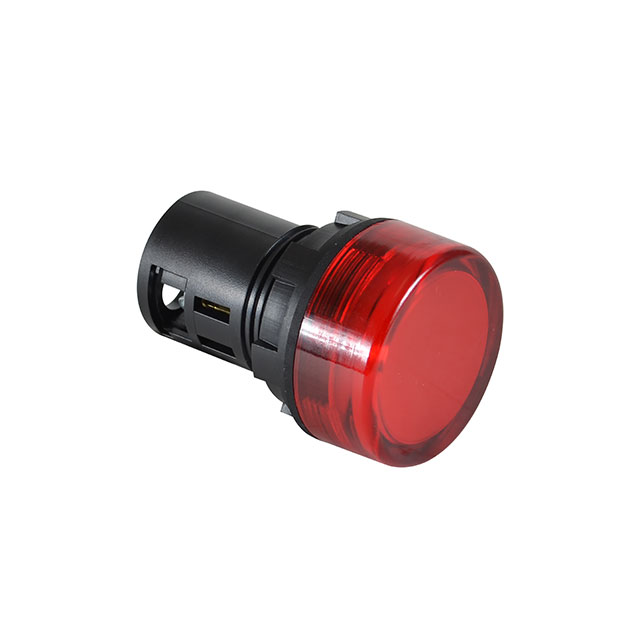

W22UNR-24LR-WNLR

Active

c3controls

22MM UBDY 24V RED NR LED/LENS

Search across all available documentation for this part.

Active

c3controls

22MM UBDY 24V RED NR LED/LENS

Technical Specifications

Parameters and characteristics commom to parts in this series

22MM UBDY 120V RED NR LED/LENS

Part	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Panel Cutout Shape	Type	Lens Color	Termination Style	Ratings	Millicandela Rating	Ingress Protection	Voltage
c3controls W22UNR-120LR-WNLR	Red	0.88 in	22.23 mm	3.5 mA	Round	LED	Red	Quick Connect	AC/DC	2000 mcd	IP66, IP67
c3controls W22UNR-24LR-WNLR	Red	0.88 in	22.23 mm	21 mA	Round	LED	Red	Quick Connect	AC/DC	2000 mcd	IP66, IP67	24 V
c3controls W22UNR-24LG-WLG	Green	0.88 in	22.23 mm	21 mA	Round	LED	Green	Quick Connect	AC/DC	2000 mcd	IP66, IP67	24 V
c3controls W22UNR-120LR-WLR	Red	0.88 in	22.23 mm	3.5 mA	Round	LED	Red	Quick Connect	AC/DC	2000 mcd	IP66, IP67
c3controls W22UNR-120LG-WNLG	Green	0.88 in	22.23 mm	3.5 mA	Round	LED	Green	Quick Connect	AC/DC	2000 mcd	IP66, IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.56

General part information

LED Panel Indicator Red 24V 21mA Quick Connect

Technical documentation and resources

No documents available
