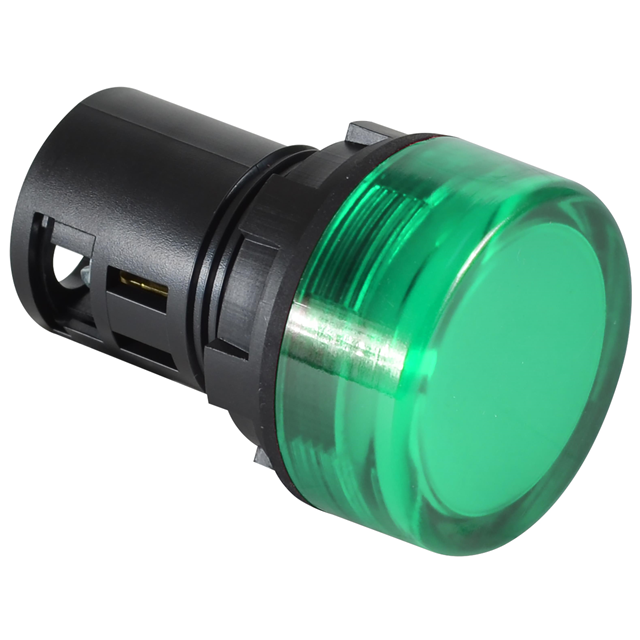

W22UNR-24LG-WLG

Active

c3controls

22MM UBDY 24V GN NR LED/EXTLENS

Search across all available documentation for this part.

Active

c3controls

22MM UBDY 24V GN NR LED/EXTLENS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.56

General part information

LED Panel Indicator Green 24V 21mA Quick Connect

Technical documentation and resources

No documents available

Part	Lamp Color	Panel Cutout Dimensions	Panel Cutout Dimensions	Current	Panel Cutout Shape	Type	Lens Color	Termination Style	Ratings	Millicandela Rating	Ingress Protection	Voltage
c3controls W22UNR-120LR-WNLR	Red	0.88 in	22.23 mm	3.5 mA	Round	LED	Red	Quick Connect	AC/DC	2000 mcd	IP66, IP67
c3controls W22UNR-24LR-WNLR	Red	0.88 in	22.23 mm	21 mA	Round	LED	Red	Quick Connect	AC/DC	2000 mcd	IP66, IP67	24 V
c3controls W22UNR-24LG-WLG	Green	0.88 in	22.23 mm	21 mA	Round	LED	Green	Quick Connect	AC/DC	2000 mcd	IP66, IP67	24 V
c3controls W22UNR-120LR-WLR	Red	0.88 in	22.23 mm	3.5 mA	Round	LED	Red	Quick Connect	AC/DC	2000 mcd	IP66, IP67
c3controls W22UNR-120LG-WNLG	Green	0.88 in	22.23 mm	3.5 mA	Round	LED	Green	Quick Connect	AC/DC	2000 mcd	IP66, IP67
